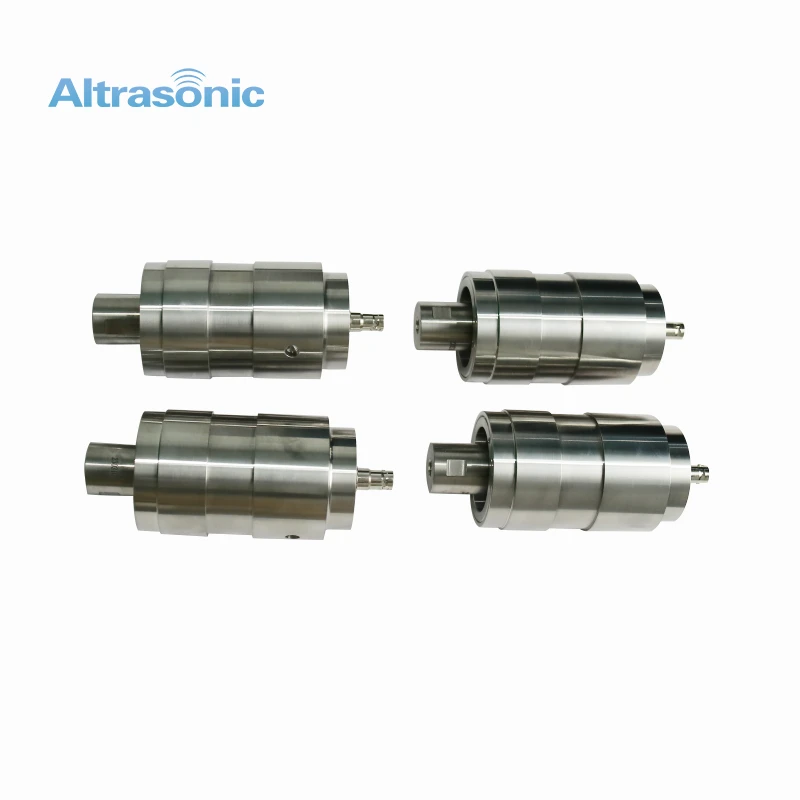

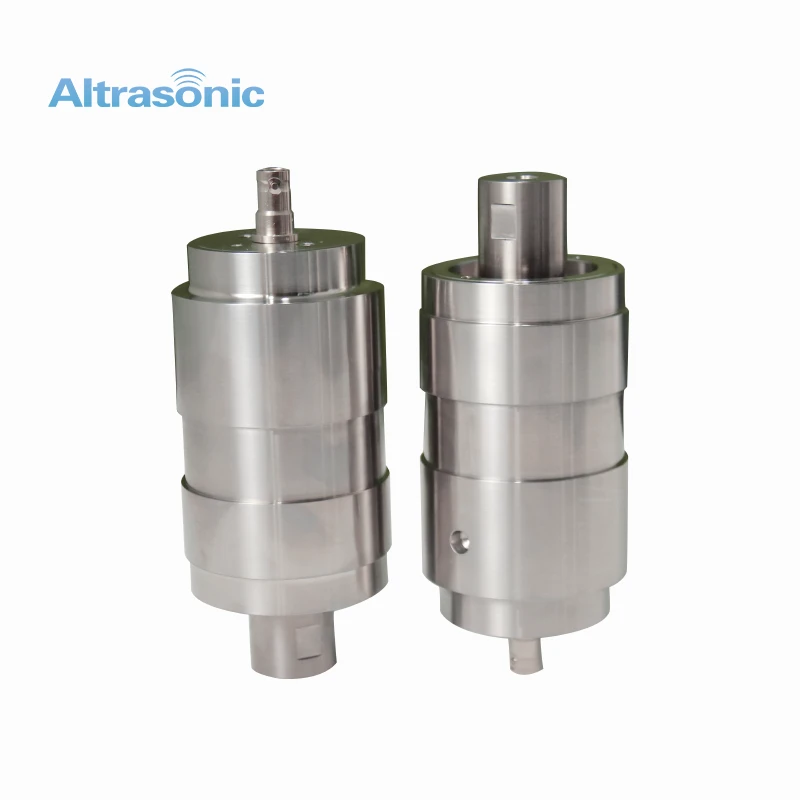

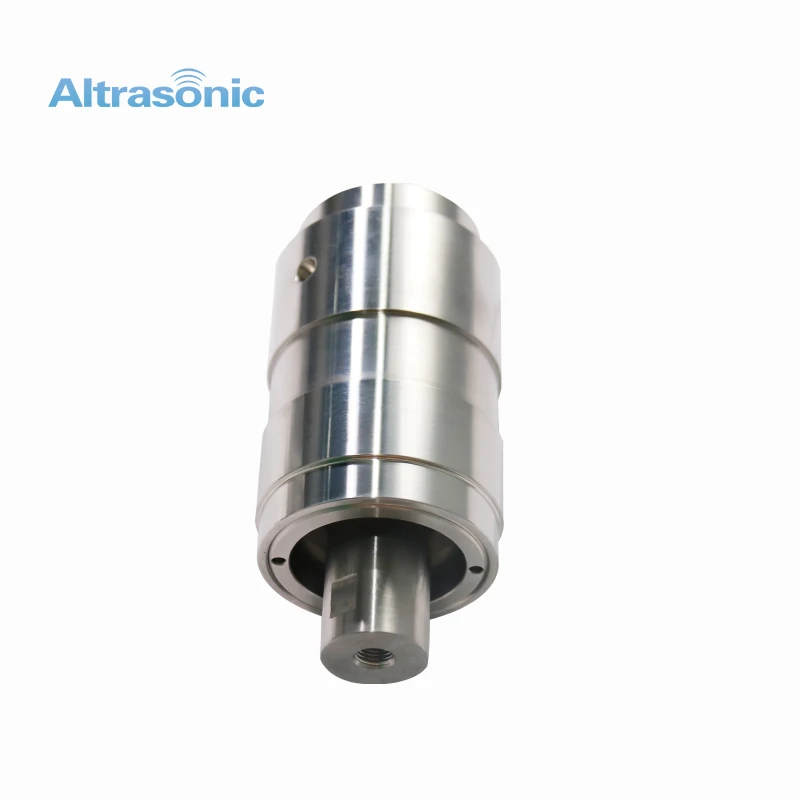

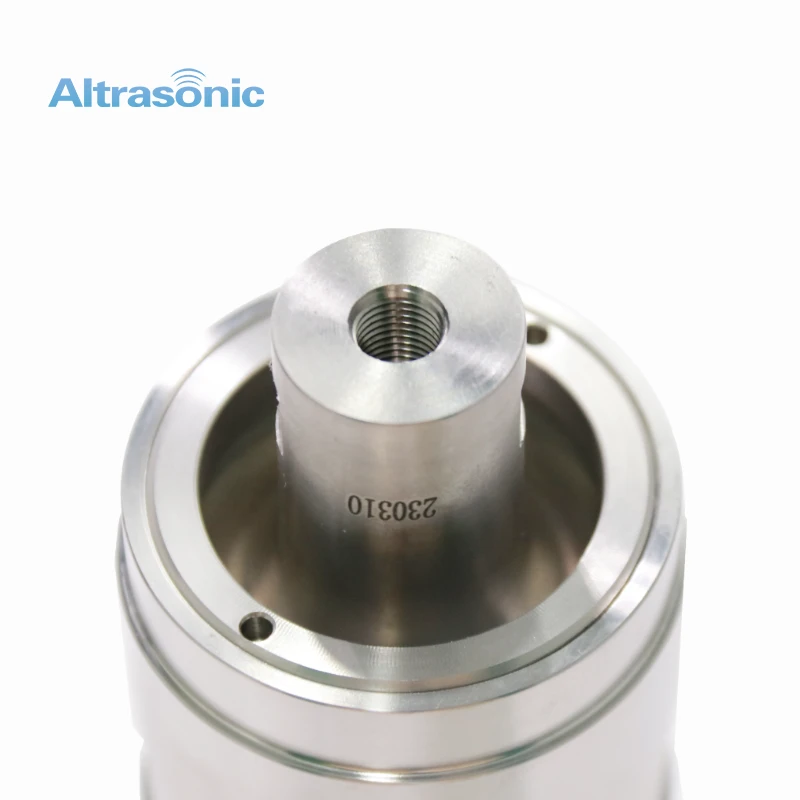

Replacement ultrasonic transducer converter for Branson CS30S (EDP: 159-135-110R). Compatible with all Branson DCX, DCX F, DCX S or 2000X Ultrasonic generator/power supply.
| Model | HS-BCS30S |
|---|---|
| Frequency: | 30kHz |
| Output power: | 500 watt |
| Joint bolt: | 3/8-24UNF |
| Capacitance: | 8.1nf |
| Size: | 145*60 |
| Application: | Plastic welding machine |
The HS-BCS30S Ultrasonic Converter/Transducer direct replacement for Branson CS-30S (EDP: 159-135-110R), ASSY CONV 30khz Solid Mount and used in combination with ultrasonic generators such as Branson DCX, DCX F, DCX S or 2000X.
The HS-BCS30S replacement ultrasonic converter is constructed from stainless steel and titanium and has a sealed housing for a higher order of environmental protection. Suitable for Branson automation components. Can be combined with a horn, booster, and power supply to form an ultrasonic system for continuous-duty or plunge welding.
