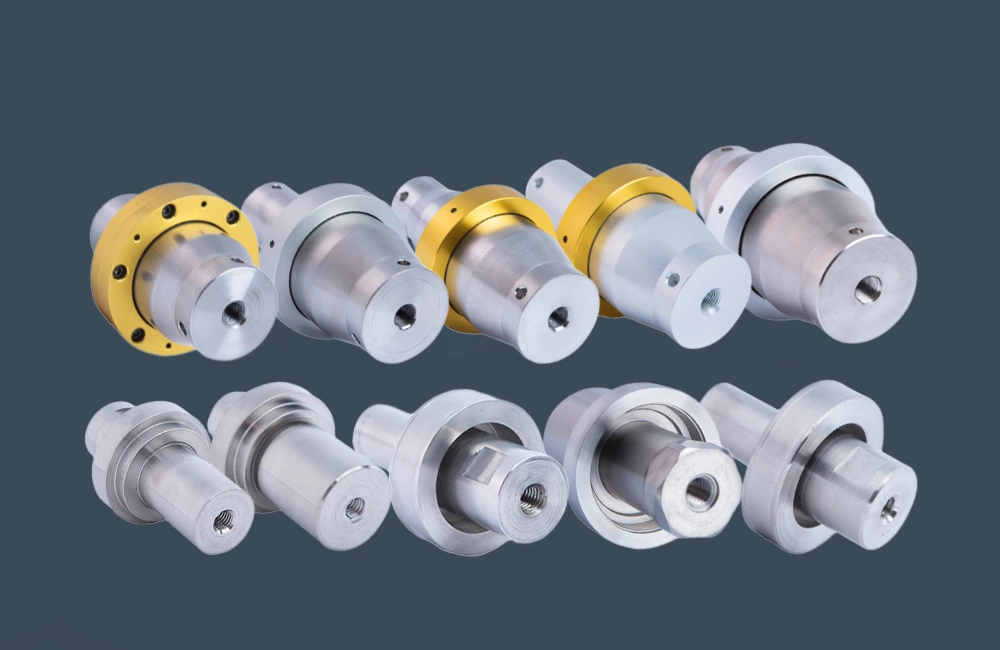

Boosters, also known as amplitude transformers, functions as bridge between converter and sonotrode. They increase or reduce the amplitude (swing) provided by the converter and conduct them to the sonotrode. It transfers the resonation and allows for fine-tuning of the operating frequency for diverse applications
It is important to be able to modify the horn face amplitude for successful ultrasonic assembly. The booster provides a means to modify the amplitude. It is designed to couple different ratios
of ultrasonic energy to the horn, which will in turn increase or decrease the amplitude at the face of the horn. This is accomplished by varying the ratios of the masses of the input and output half sections of the booster(conventional transformation ratios: 1:1, 1:1.5, 1:2, 1:2.5, 1:3).
The booster is a resonant half-wave section of aluminum, titanium or steel. It is mounted between the converter and the horn, as part of the ultrasonic stack. It also provides a clamping point for rigid stack mounting.
Which booster makes the most sense for your application(s) depends on requirements such as materials being welded, the frequency of the vibrations, and the size and shape of the sonotrode. The experts at Altrasonic Technology have the expertise and knowledge necessary to ensure you find the equipment that is best suited for your particular requirements.
