40kHz 800W Replacement Ultrasonic Transducer/Converter Branson 4TR

Replacement ultrasonic transducer converter for Branson 4TR (EDP: 101-135-042R). Compatible with all Branson 40kHz 4MB4, 4MB3, 4MC3, 943, 947 900, 2000 & 2000X series welders, and DCX series power supply/Generator.

  • High-precision output, strong frequency stability
  • Low insertion loss, high energy conversion efficiency
  • Uses automated production lines, supports continuous operation
  • CE certified, one-year warranty
  • Perfect replacement for Branson 4TR (101-135-042R)
Enquiry

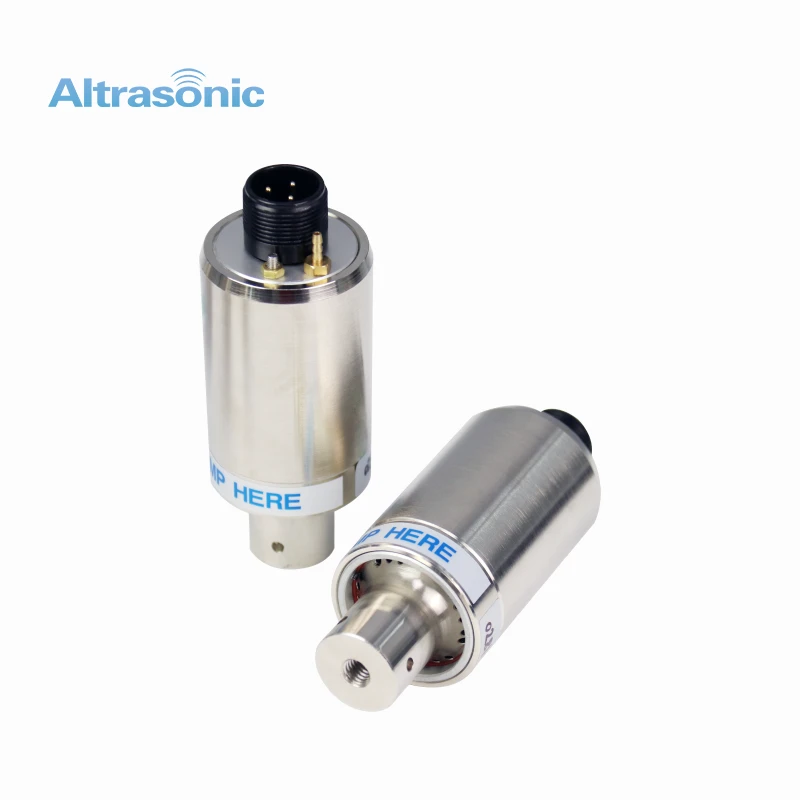

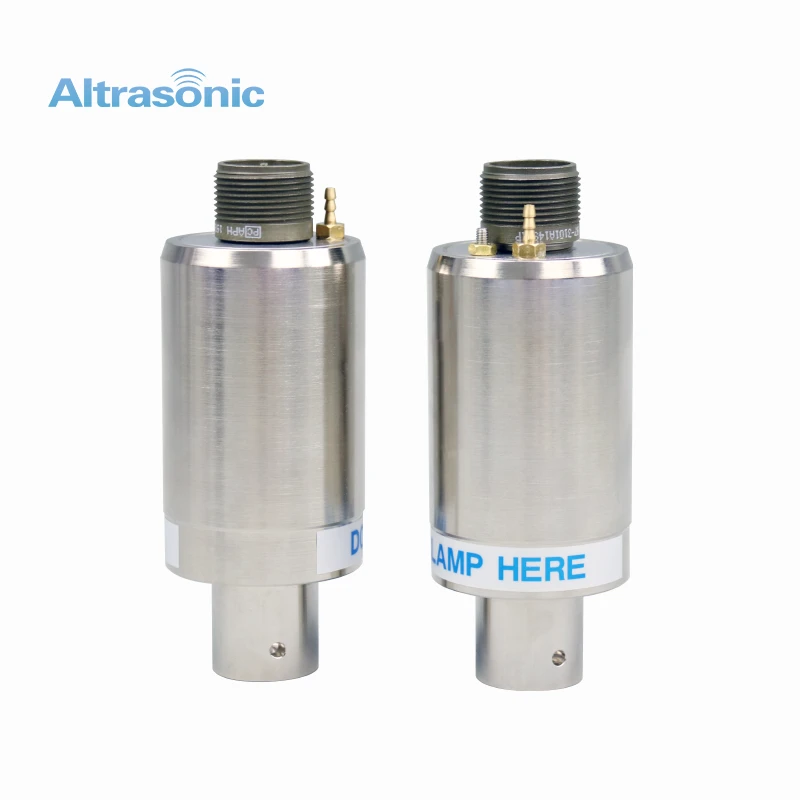

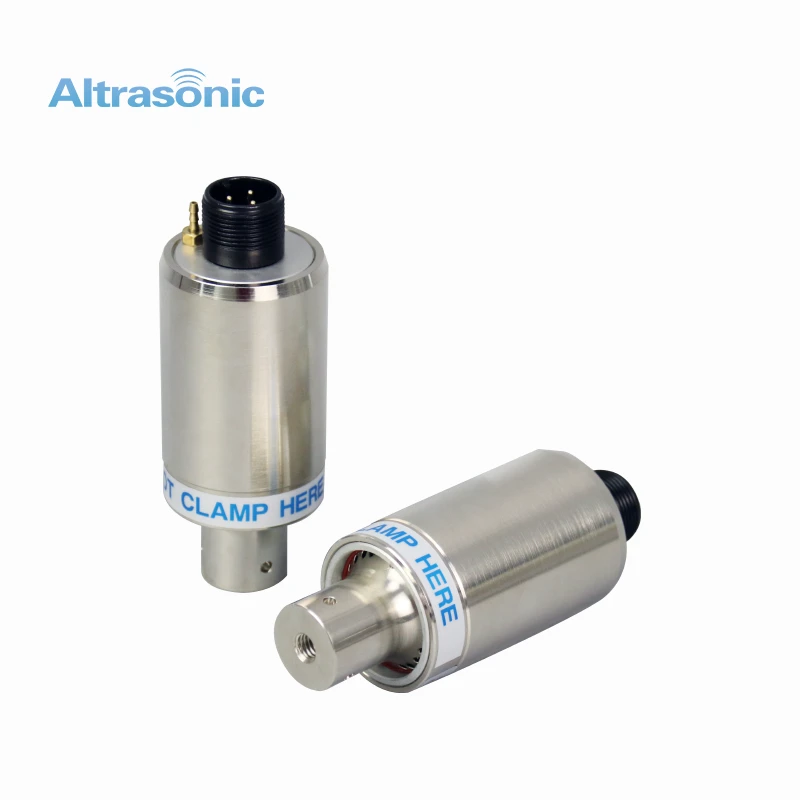

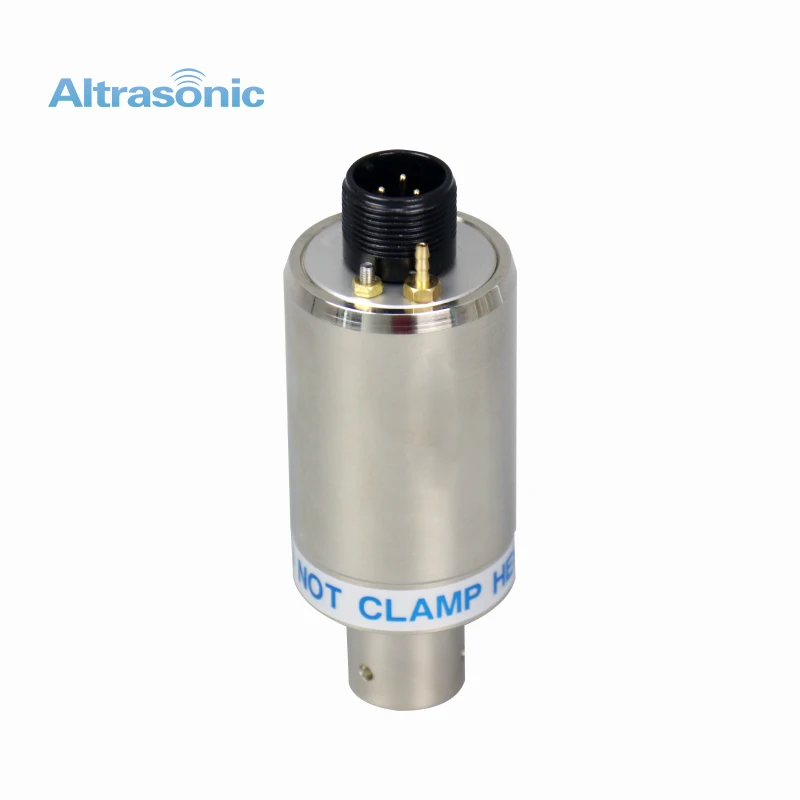

Replacement Ultrasonic Transducer Branson 4TR
Replacement Ultrasonic Transducer Branson 4TR
Replacement Ultrasonic Transducer Branson 4TR
Replacement Ultrasonic Transducer Branson 4TR
Replacement Ultrasonic Transducer Branson 4TR
Replacement Ultrasonic Transducer Branson 4TR
Replacement Ultrasonic Transducer Branson 4TR
Replacement Ultrasonic Transducer Branson 4TR
Replacement Ultrasonic Transducer Branson 4TR
Replacement Ultrasonic Transducer Branson 4TR

Product Introduction

Specification

Model HS-B4TR
Frequency: 40kHz
Output power:  800watt
Joint bolt: M8*1.25
Piezoceramic Diameter:  25mm
Qty of piezoceramics: 4pcs
Capacitance: 5.7-5.9nf
Size: 114*45
Application: Plastic welding machine

Description

The HS-B4TR Ultrasonic Converter/Transducer direct replacement for Branson 4TR (EDP: 101-135-042R). Designed specifically for automation and system manufacturers. Suitable for Branson 40kHz 4MB4, 4MB3, 4MC3, 943, 947 900, 2000 & 2000X series welders, and DCX series power supply/Generator.
All of the parts are all new.The parts are made from certified materials in tightly controlled manufacturing processes, assembled andtested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

Branson ultrasonic 4TR converter replacement

Advantage

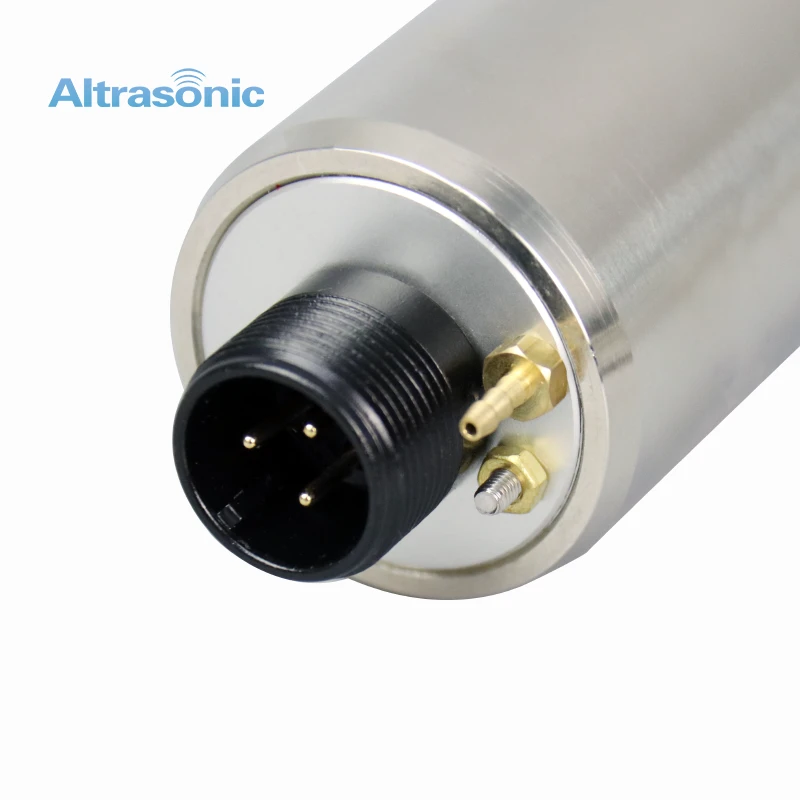

  1. The standard connector is a 3-PIN connector(14S-7P), MS connectors also can be customized upon request.
  2. The converter is made of aluminum and provides an economical solution for most general applications.
  3. Inlet port for air cooling, IP20.

Branson 4TR converter
