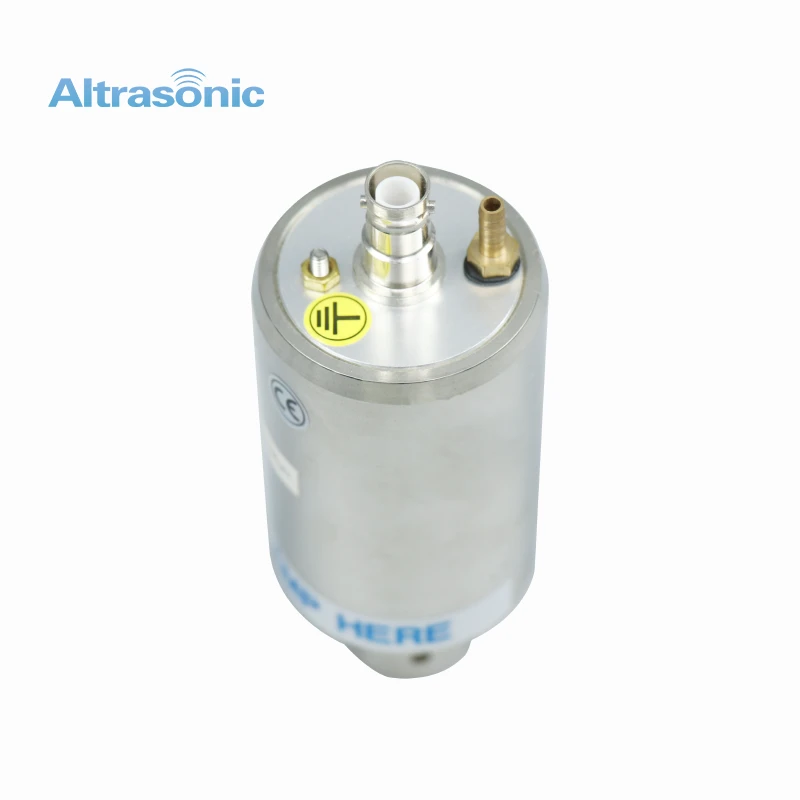

40kHz 500W Replacement Ultrasonic Transducer/Converter Branson 4TH

Replacement ultrasonic transducer converter for Branson 4TH (EDP: 101-135-067R). Compatible with all Branson 40kHz 900, 2000 & 2000X series welders, and DCX series power supply/Generator.

  • High-precision output, strong frequency stability
  • Low insertion loss, high energy conversion efficiency
  • Uses automated production lines, supports continuous operation
  • CE certified, one-year warranty
  • Perfect replacement for Branson 4TH (101-135-067R)
Enquiry

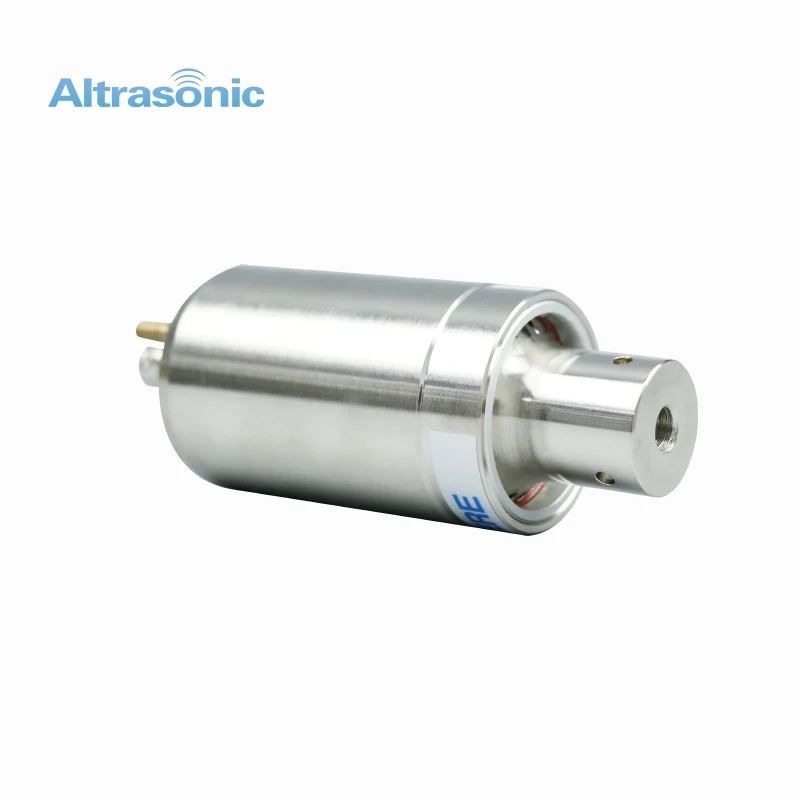

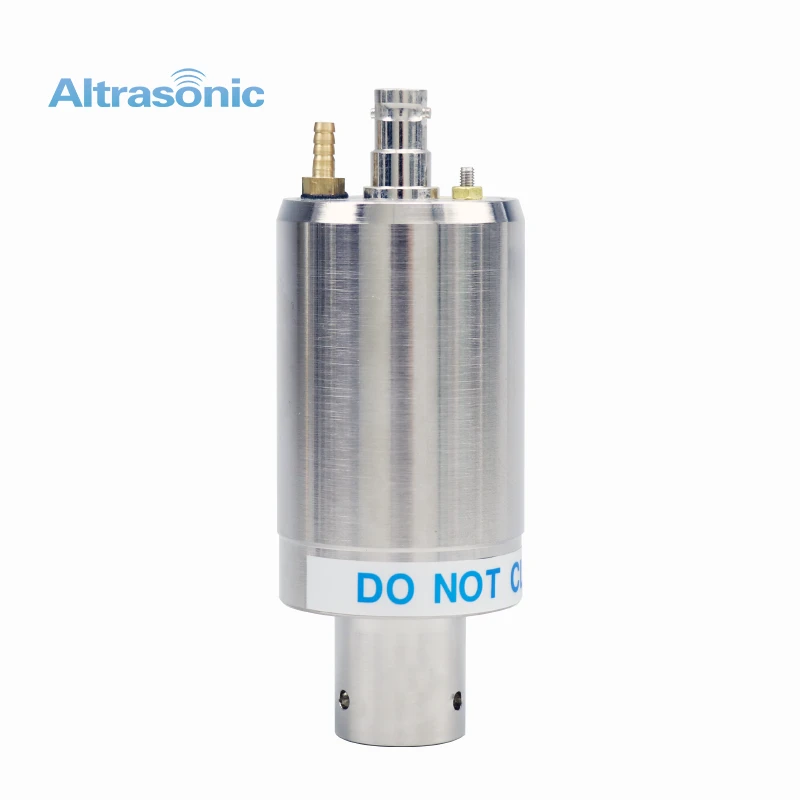

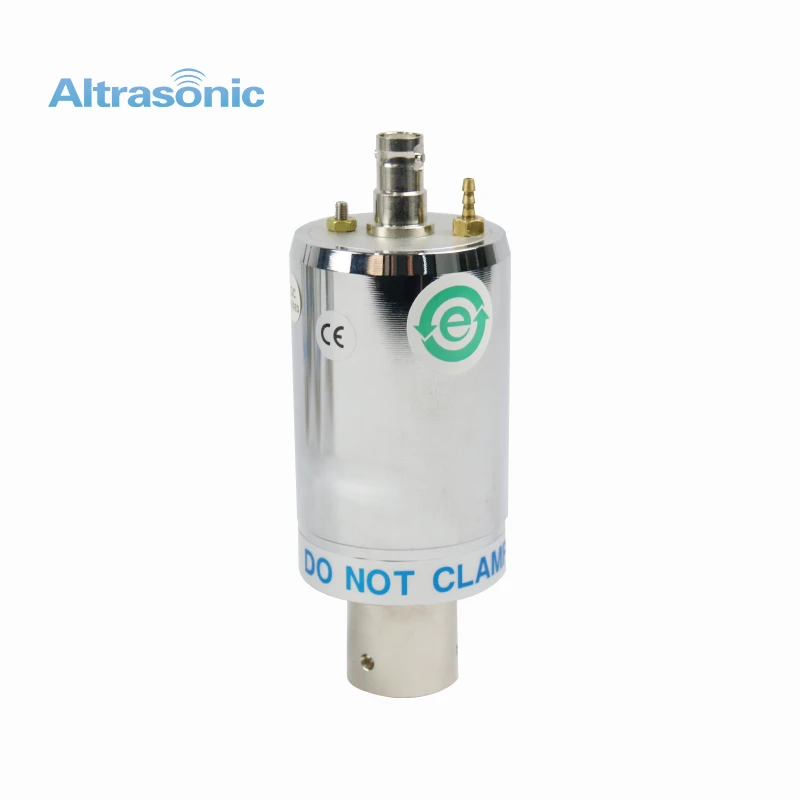

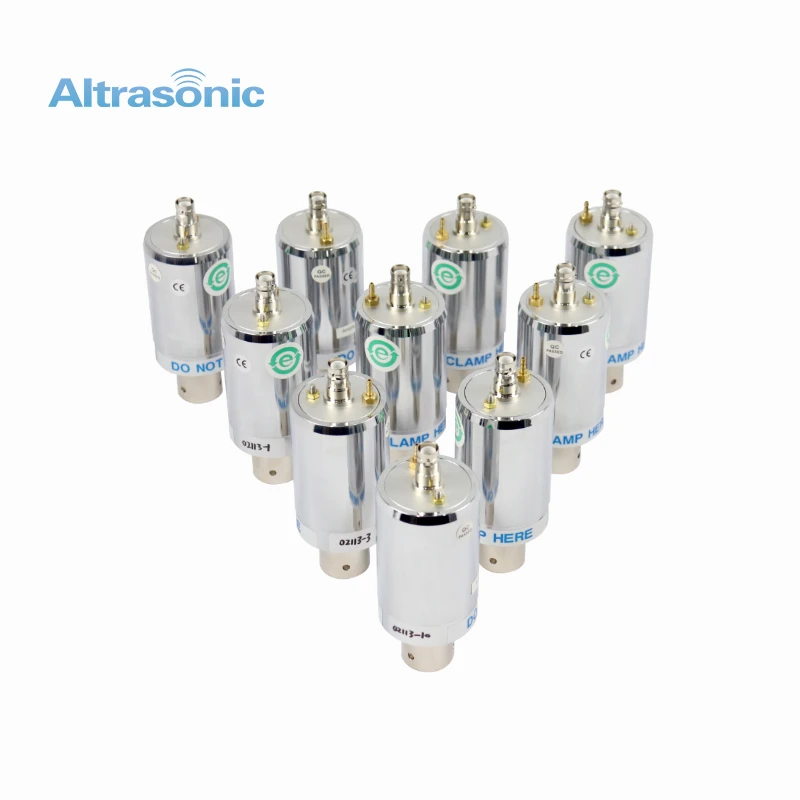

Replacement Ultrasonic Transducer Branson 4TH
Replacement Ultrasonic Transducer Branson 4TH
Replacement Ultrasonic Transducer Branson 4TH
Replacement Ultrasonic Transducer Branson 4TH
Replacement Ultrasonic Transducer Branson 4TH
Replacement Ultrasonic Transducer Branson 4TH
Replacement Ultrasonic Transducer Branson 4TH
Replacement Ultrasonic Transducer Branson 4TH
Replacement Ultrasonic Transducer Branson 4TH
Replacement Ultrasonic Transducer Branson 4TH

Product Introduction

Specification

Model HS-B4TH
Frequency: 40kHz
Output power:  500 watt
Joint bolt: M8*1.25
Piezoceramic Diameter:  25mm
Qty of piezoceramics: 4pcs
Capacitance: 4.5-5.3nf
Amplitude: 6-8μm
Size: 114*45
Application: Plastic welding machine

Description

The HS-B4TH Ultrasonic Converter/Transducer direct replacement for Branson 4TH (EDP: 101-135-067R). Designed specifically for automation and system manufacturers. Suitable for Branson 40kHz 900, 2000 & 2000X series welders, and DCX series power supply/Generator.
All of the parts are all new.The parts are made from certified materials in tightly controlled manufacturing processes, assembled andtested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

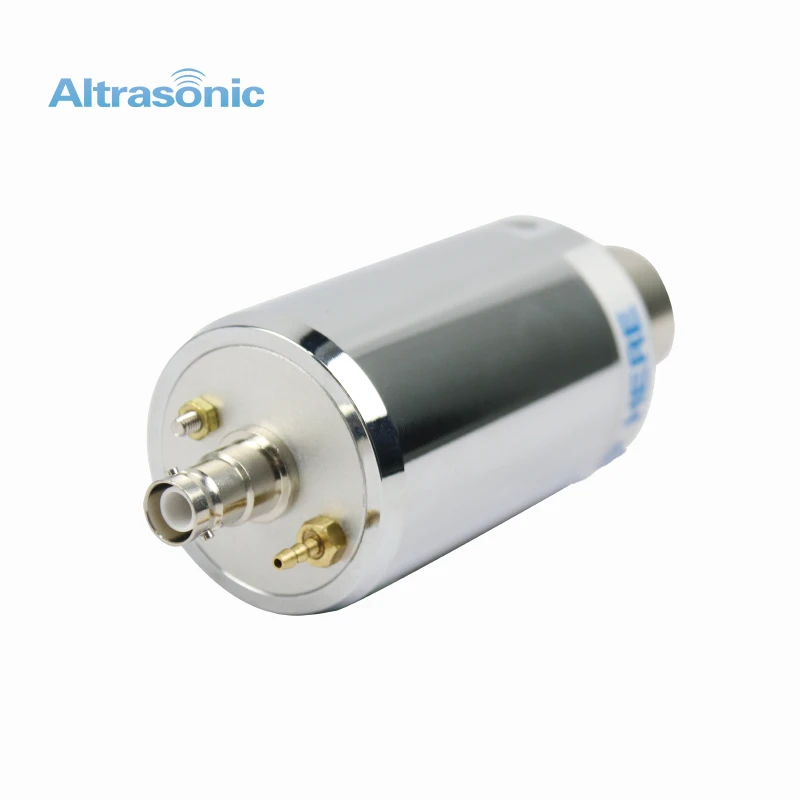

Branson ultrasonic 4TH converter replacement

Advantage

  1. All standard DCX RF cables can be connected.
  2. The standard connector is a BNC connector, but other connectors can be customized upon request.
  3. The converter is made of aluminum and provides an economical solution for most general applications.
  4. Inlet port for air cooling, IP20.

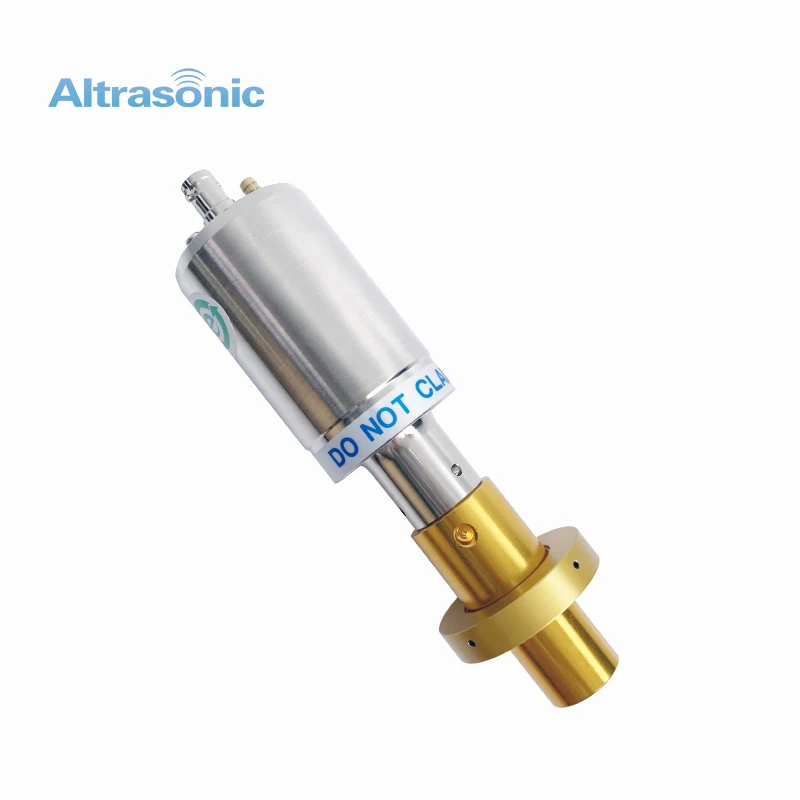

Branson4TH converter with booster

Related Products

Reliable and efficient energy storage systems for various applications, ensuring continuous power and cost savings.

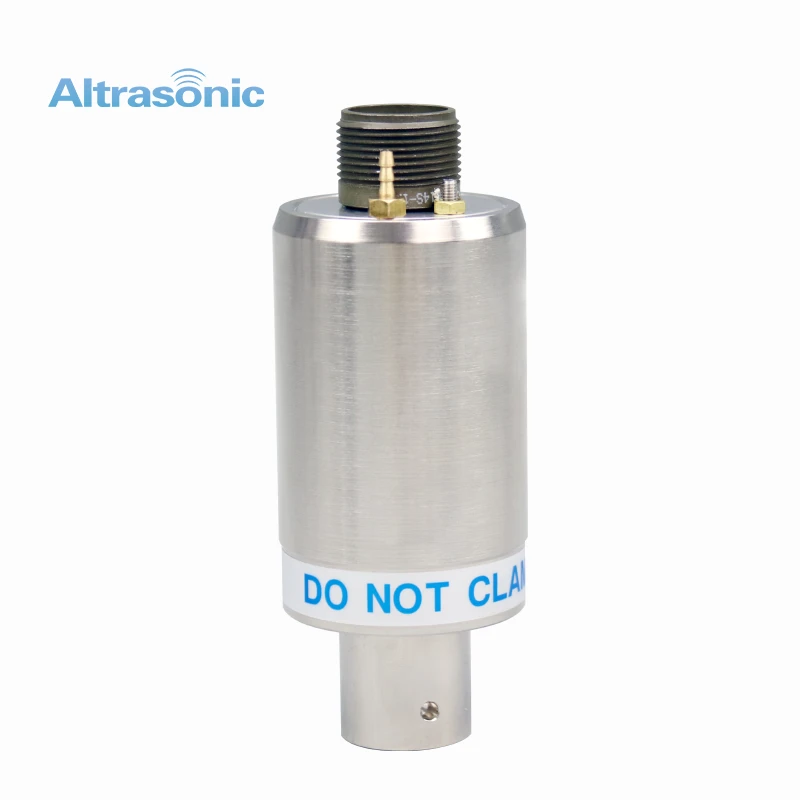

Replacement Ultrasonic Transducer Branson 4TR

Replacement Ultrasonic Transducer Branson 4TR

Replacement ultrasonic transducer converter for Branson 4TR (EDP: 101-135-042R). Compatible with all Branson 40kHz 4MB4, 4MB3, 4MC3, 943, 947 900, 200...
Read More
Replacement Ultrasonic Transducer Branson 4TH

Replacement Ultrasonic Transducer Branson 4TH

Replacement ultrasonic transducer converter for Branson 4TH (EDP: 101-135-067R). Compatible with all Branson 40kHz 900, 2000 & 2000X series welder...
Read More

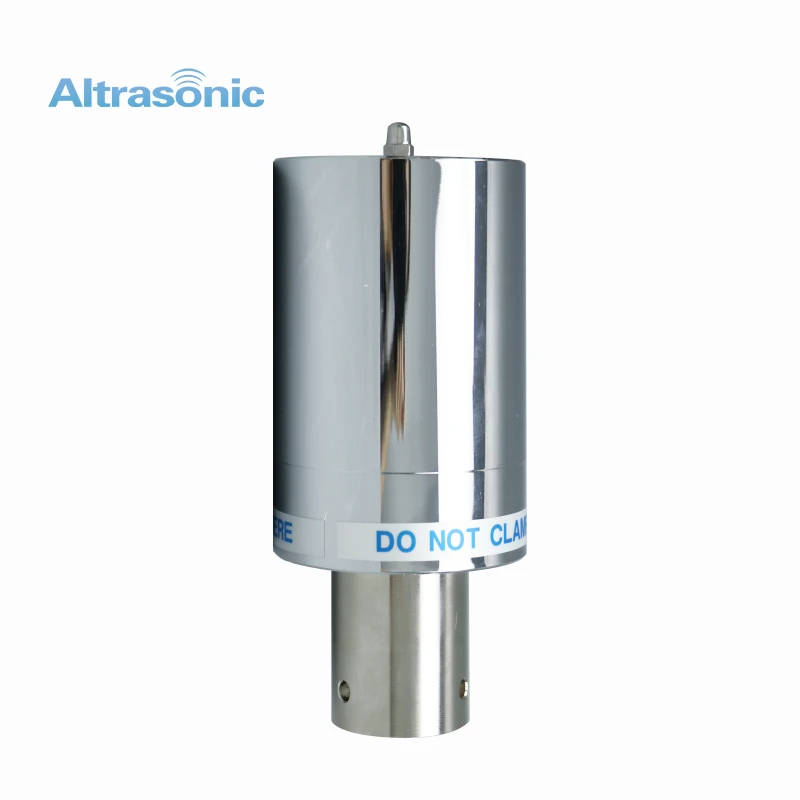

Replacement Ultrasonic Transducer Branson 402
