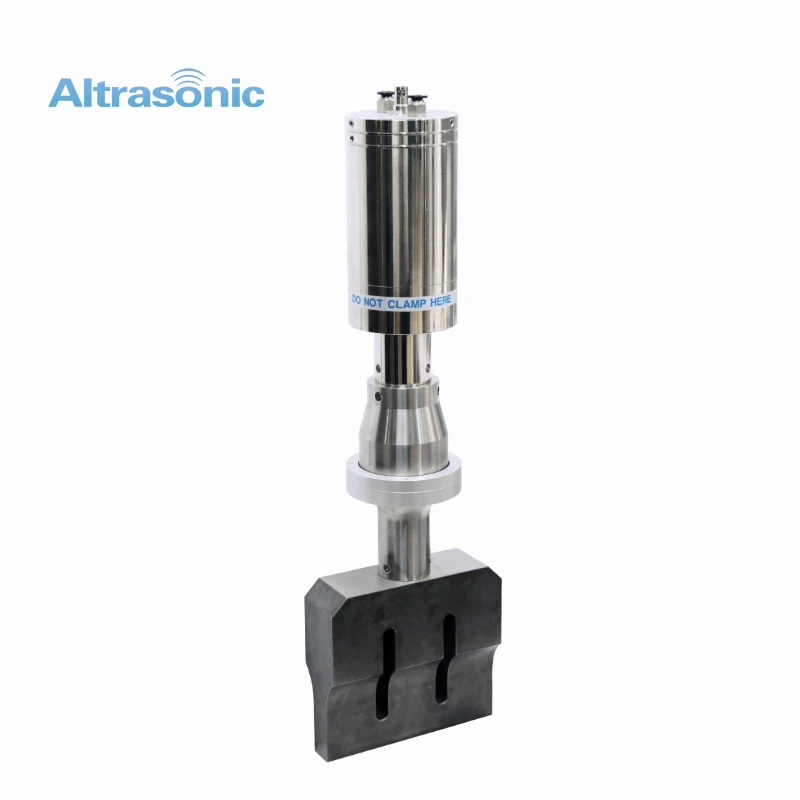

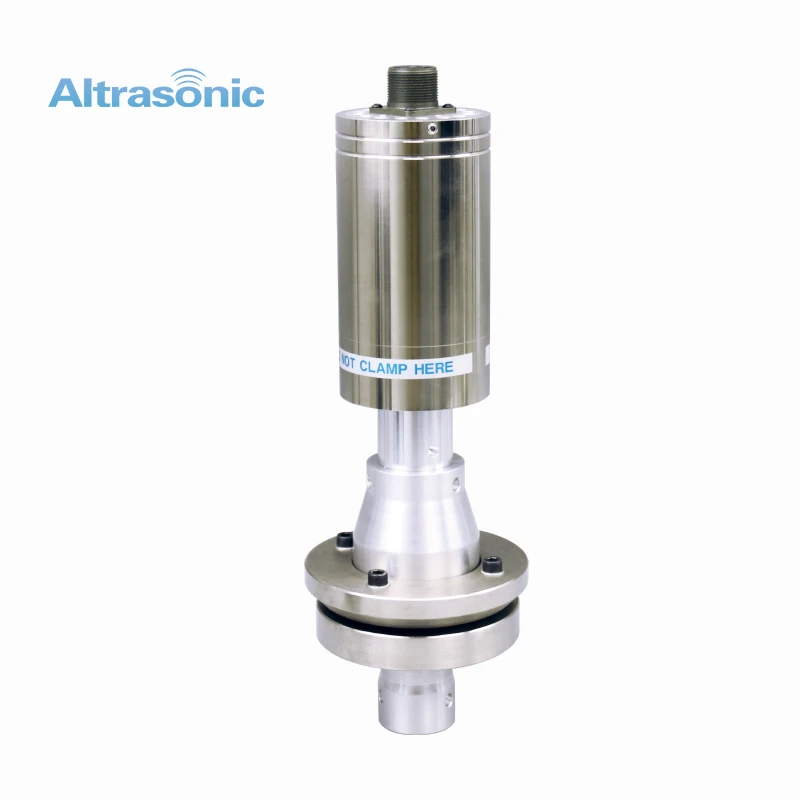

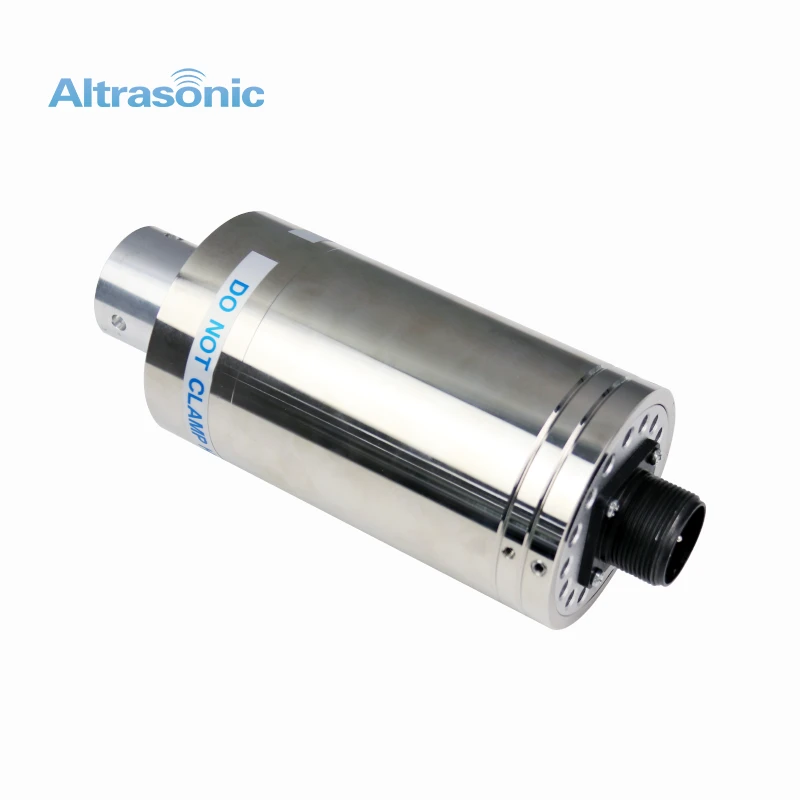

Replacement ultrasonic transducer converter for Branson CR20 (EDP: 101-135-060). Compatible with all Branson 20kHz 2000 & 2000X series welders, and DCX series power supply/Generator.
| Model | HS-BCR20 |
|---|---|
| Frequency: | 20kHz |
| Output power: | 2000 watt |
| Joint bolt: | 1/2-20 UNF |
| Piezoceramic Diameter: | 50mm |
| Qty of piezoceramics: | 6pcs |
| Capacitance: | 19-21nf |
| Amplitude: | 20μm |
| Impedance: | 2-3Ω |
| Size: | 192*76 |
| Application: | Plastic welding machine |

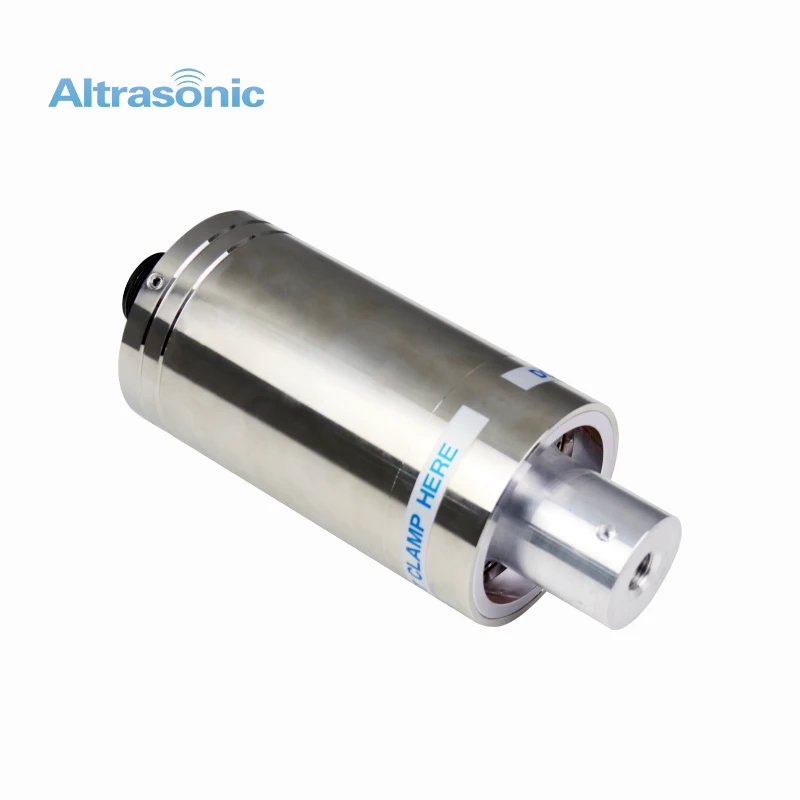

The HS-BCR20 Ultrasonic Converter/Transducer direct replacement for Branson CR20 (EDP: 101-135-060). Designed specifically for automation and system manufacturers. These transducers are designed to cover a wide range of applications, and when used in combination with generators such as DCX or 2000X, this matching combination provides a powerful and high-performance ultrasonic welding system. By emphasising innovation, reliability and proven technology, our replacement transducers have become the best choice for solving your original CR20 failure problems.
All of the parts are all new.The parts are made from certified materials in tightly controlled manufacturing processes, assembled andtested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

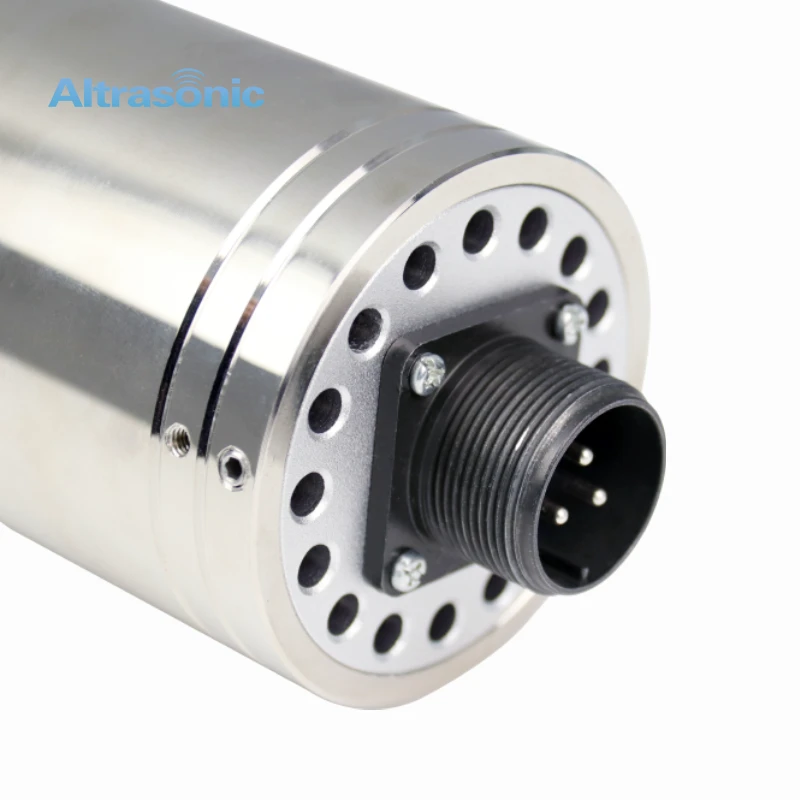

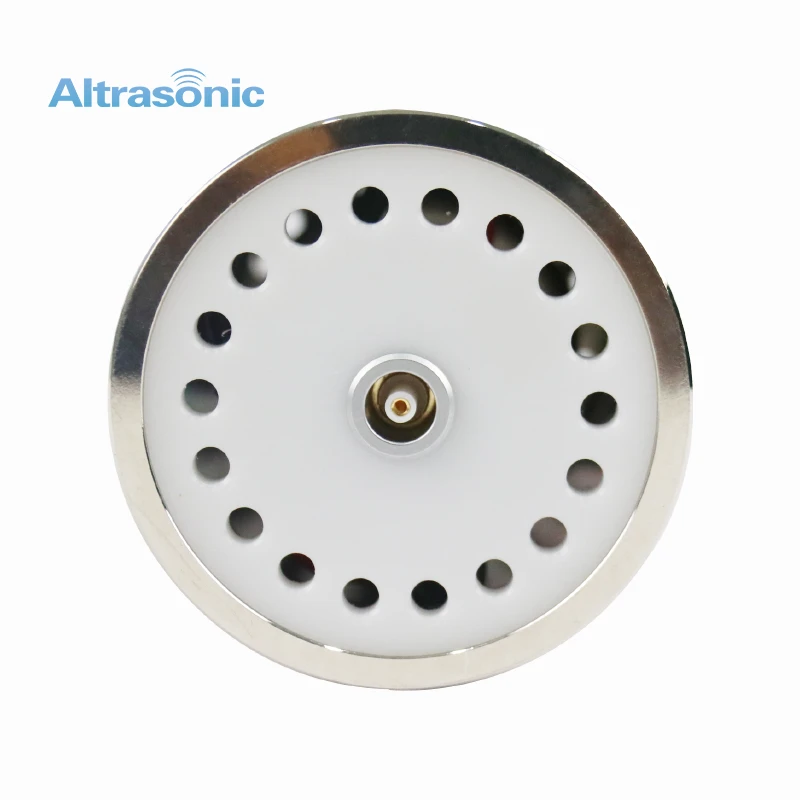

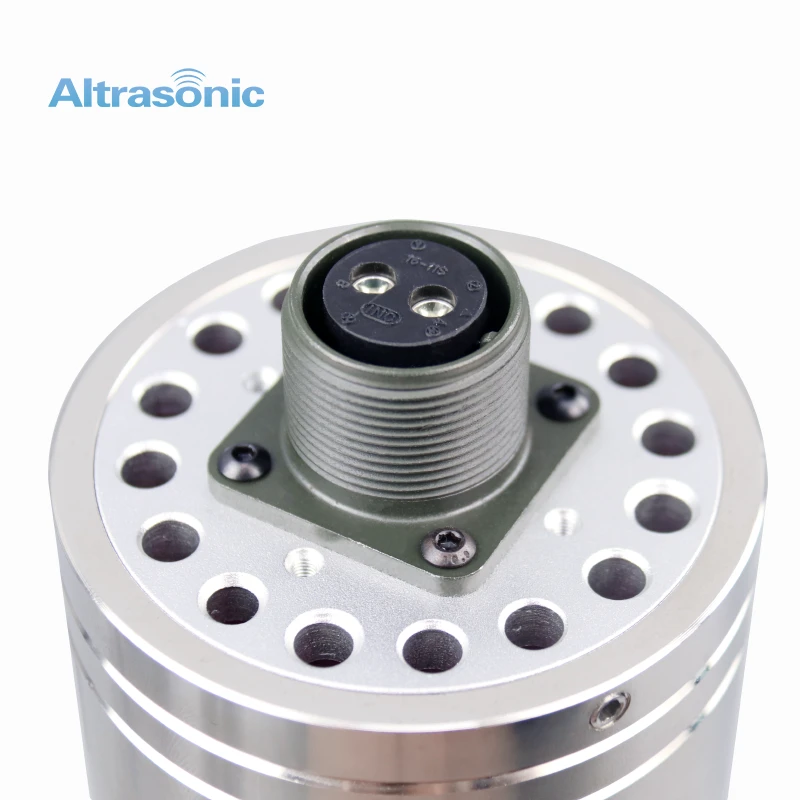

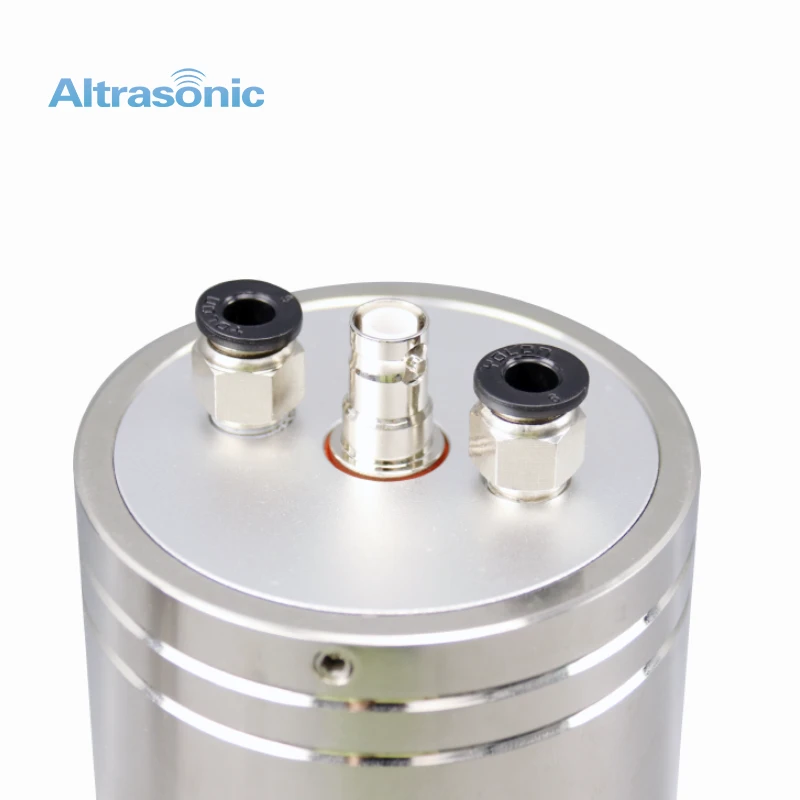

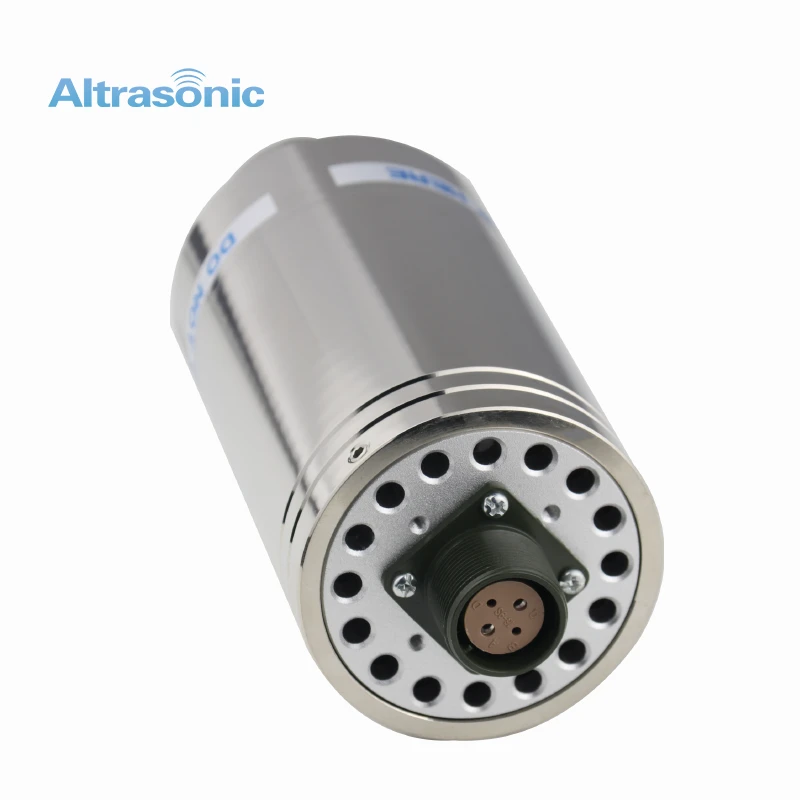

The CR20 replacement converter is provides an economical solution for most general-purpose applications. The inlet port for air cooling can be customised. To accommodate moving converters, all Branson CR20 replacement converters' RF electrical connections can be customised in a variety of types, such as BNC, SHV, LEMO connectors, 16-9S, 16-11S, and 3-pin aviation connectors.
