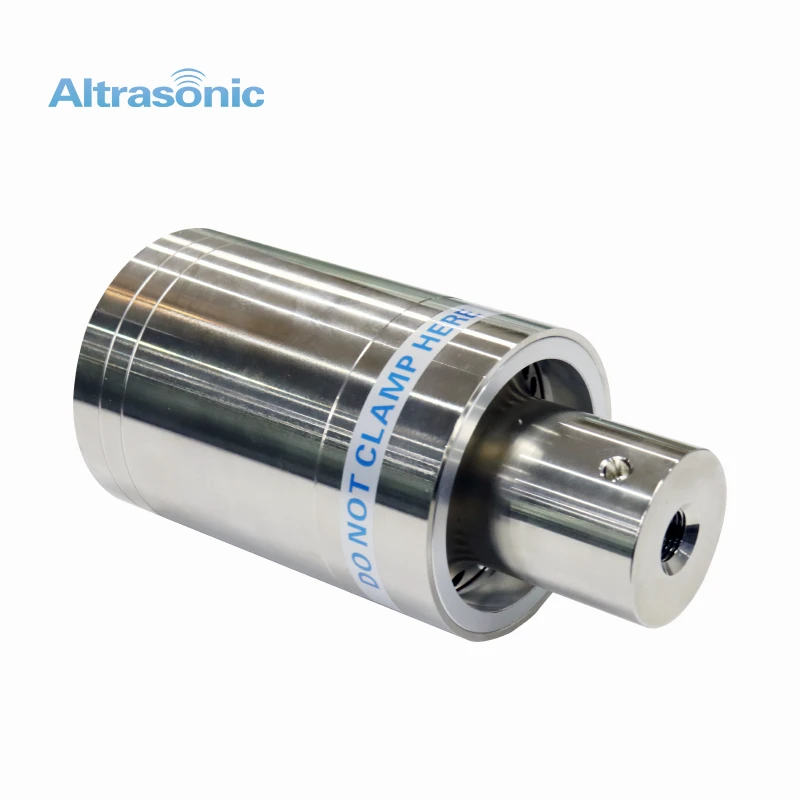

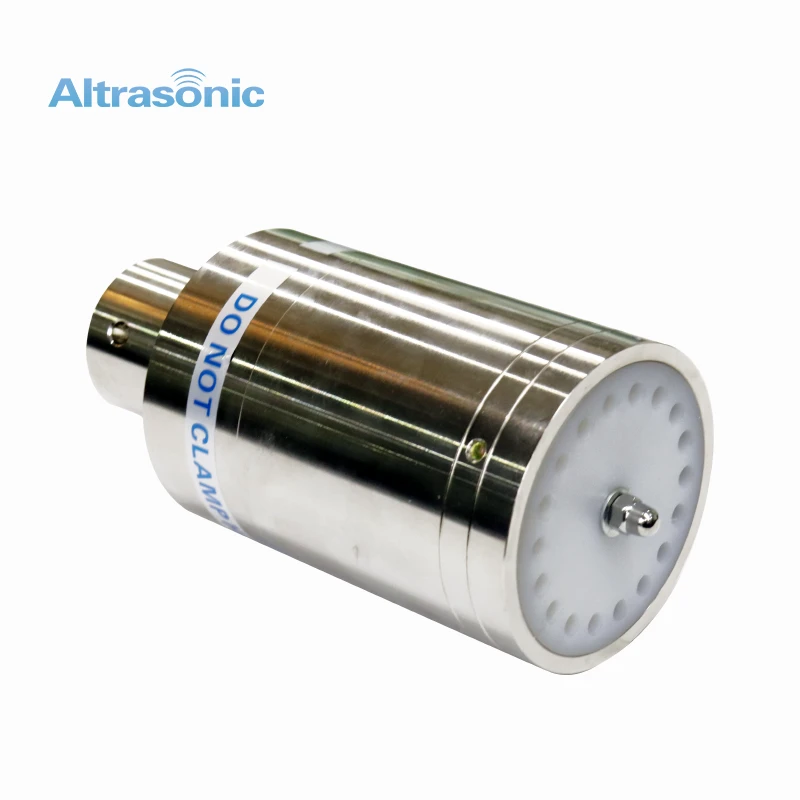

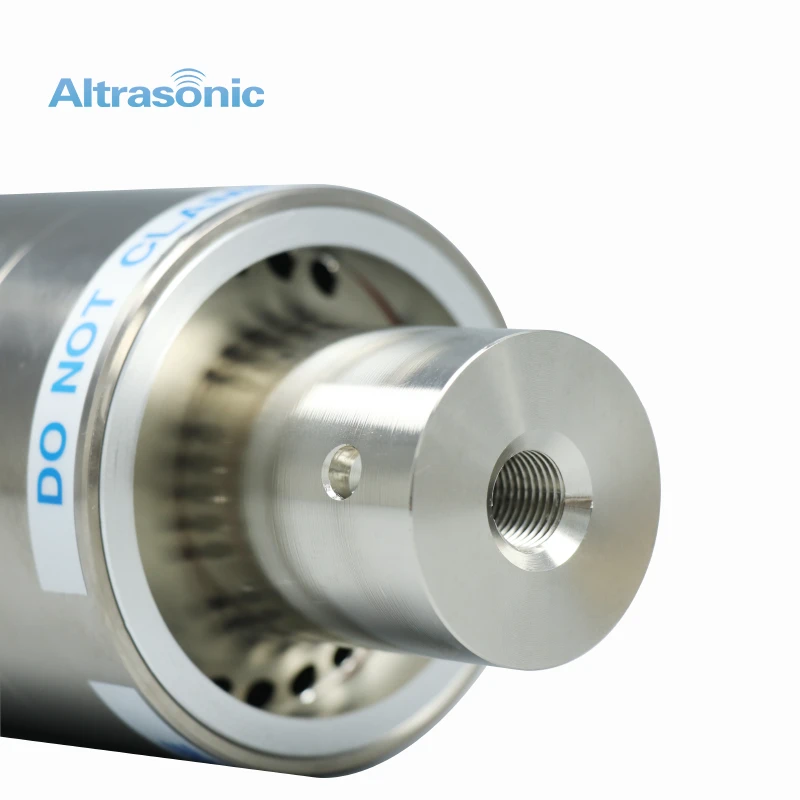

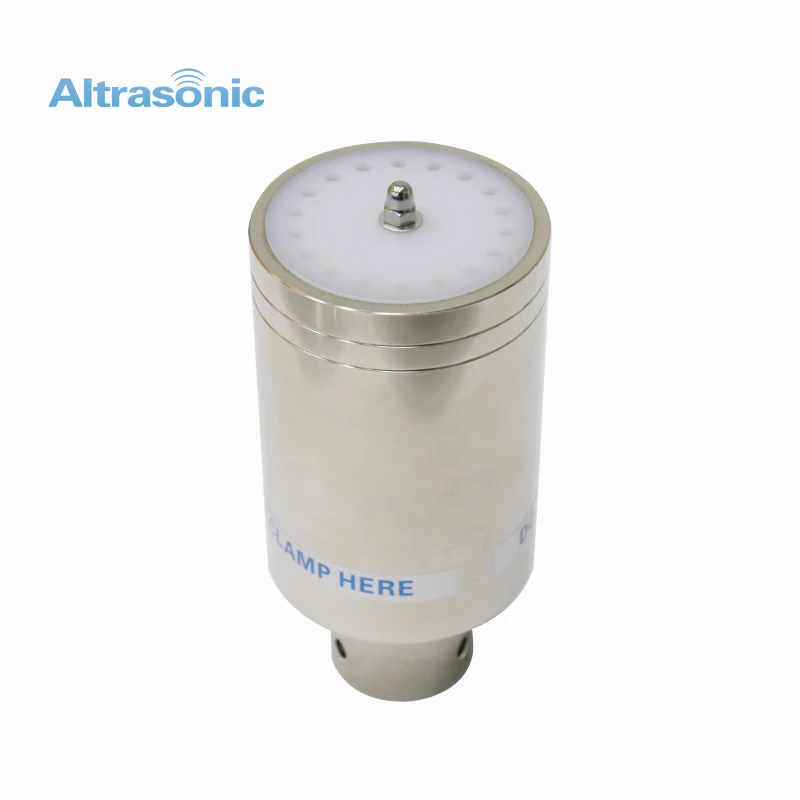

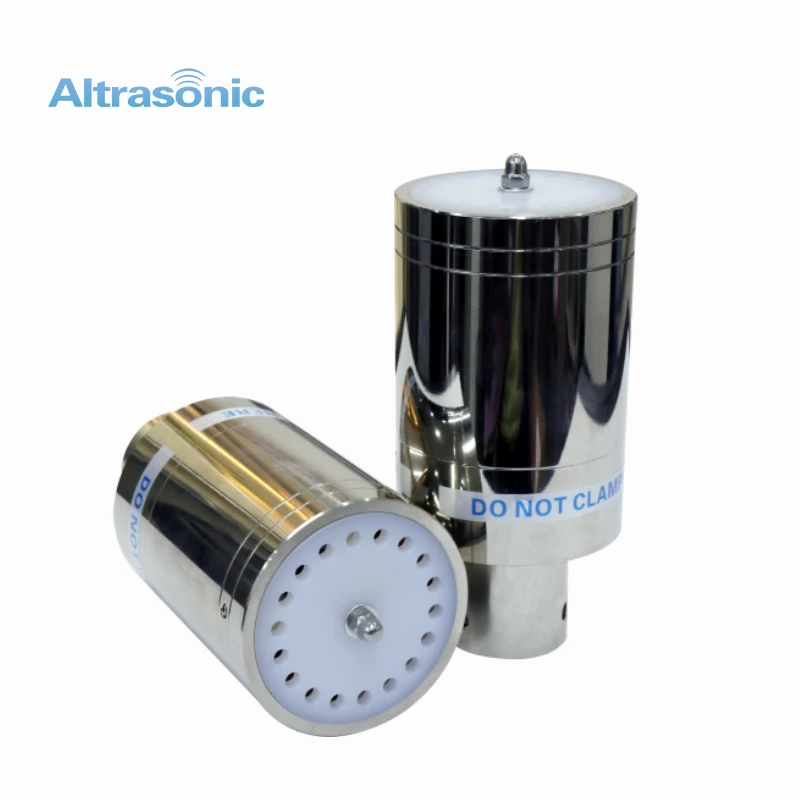

Replacement ultrasonic transducer converter for Branson CJ20 (EDP: 101-135-059). Compatible with all Branson 20kHz 2000 & 2000X series welders, and DCX series IW, actuator and assembly stand systems.
| Model | HS-BCJ20 |
|---|---|
| Frequency: | 20kHz |
| Output power: | 2000 watt |
| Joint bolt: | 1/2-20 UNF |
| Piezoceramic Diameter: | 50mm |
| Qty of piezoceramics: | 6pcs |
| Capacitance: | 19-21nf |
| Amplitude: | 20μm |
| Impedance: | 2-3Ω |
| Size: | 162*75 |
| Application: | Plastic welding machine |
The HS-BCJ20 Ultrasonic Converter/Transducer direct replacement for Branson CJ20 (EDP: 101-135-059) that delivers lower cost, rugged quality and superior value. We have made every effort to incorporate functional improvements based on the original factory design to enhance the durability of these transducers. We have spared no effort in our endeavours to provide you with the best product currently available. We are proud to introduce this unique converter, which may surpass the original factory product. Like automotive replacement parts, aftermarket parts are often superior to original factory parts and less expensive.
All of the parts are all new.The parts are made from certified materials in tightly controlled manufacturing processes, assembled andtested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.
