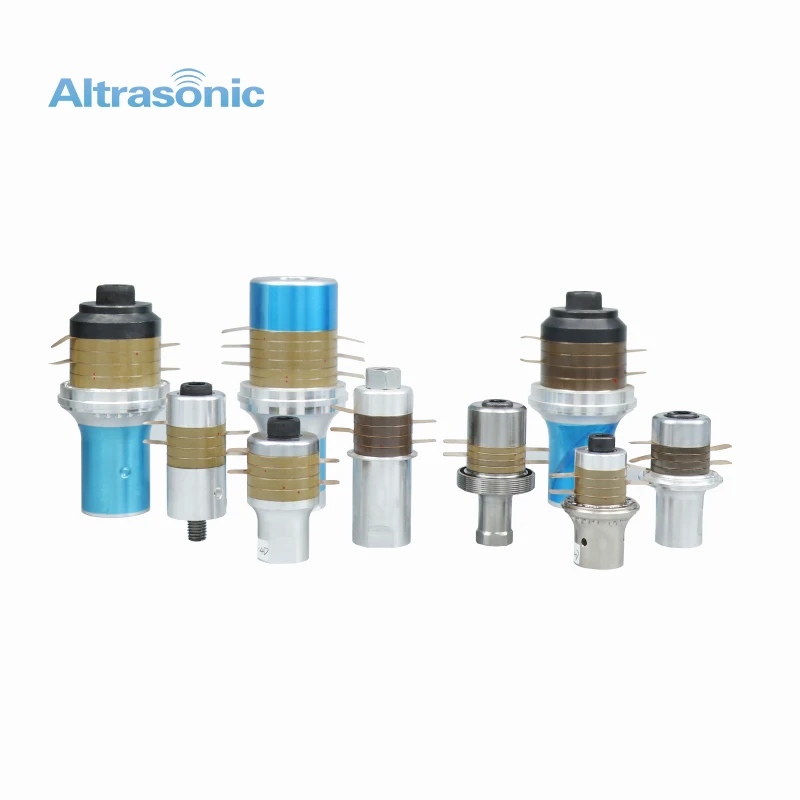

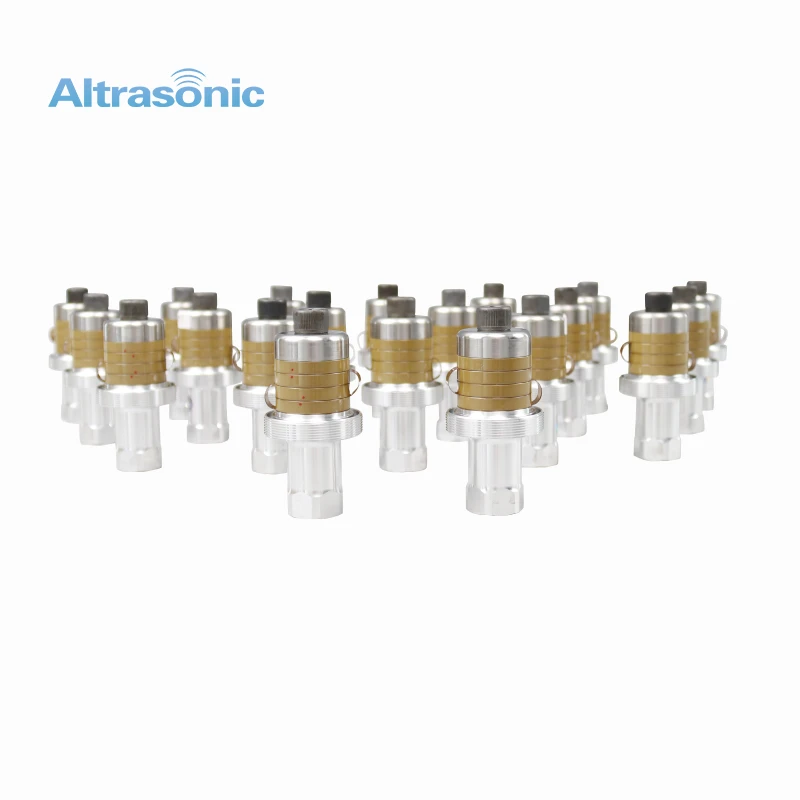

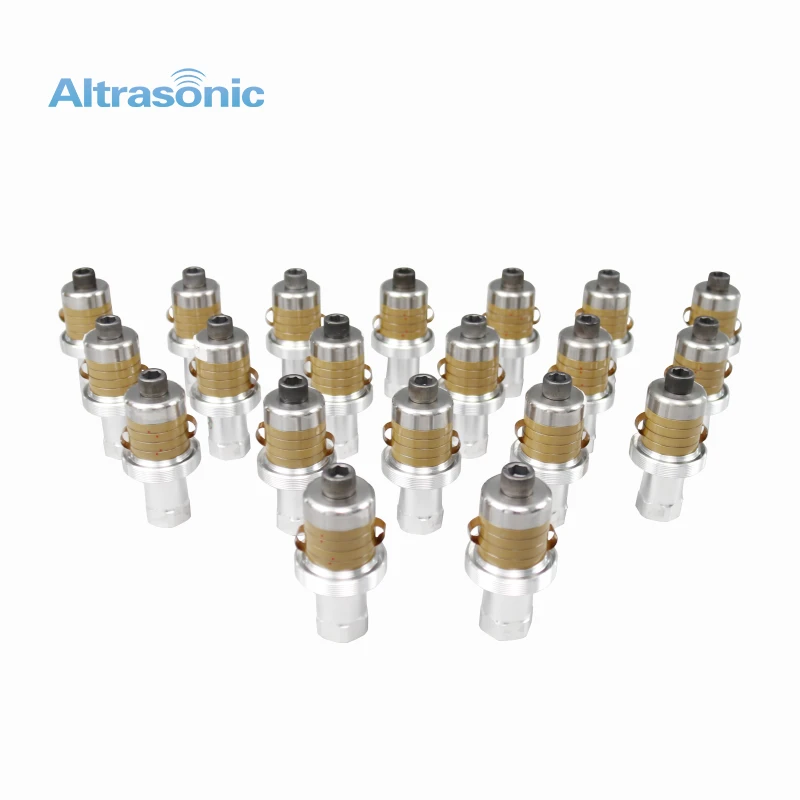

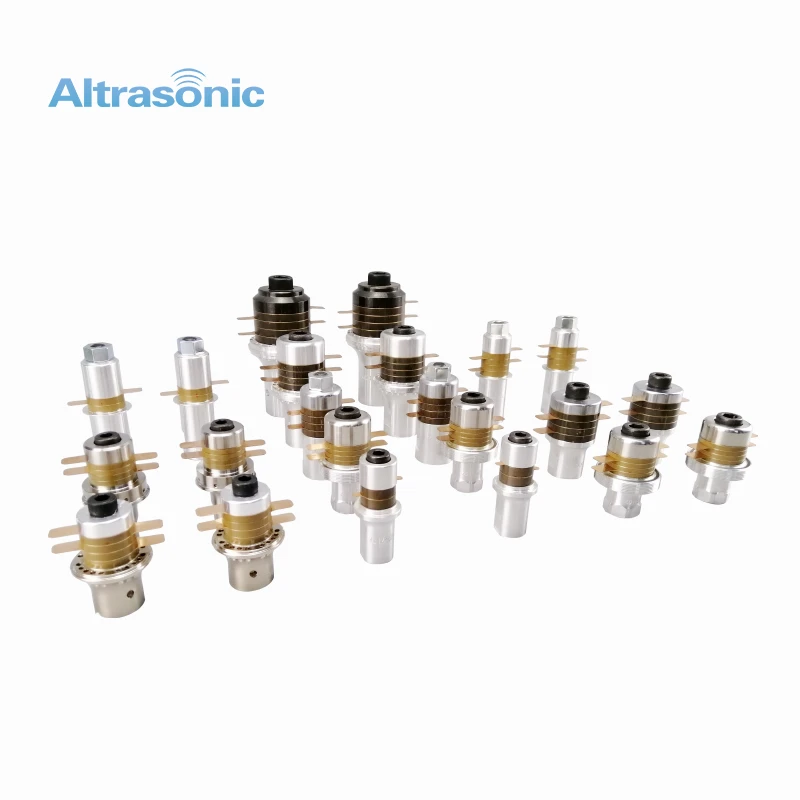

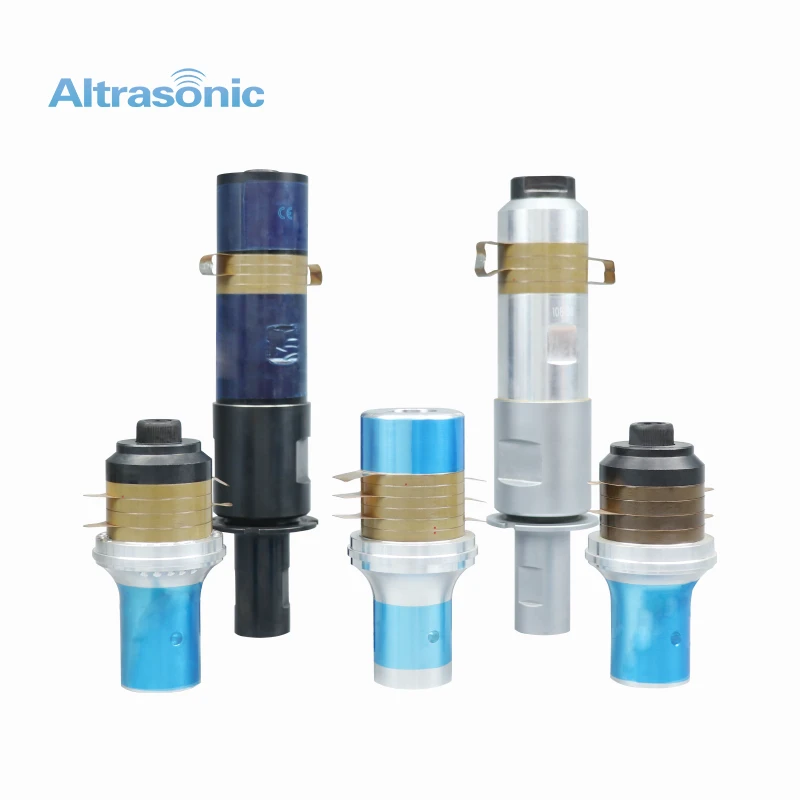

15-70kHz Ultrasonic Welding Transducer/Converter

The core of ultrasonic transducer is piezoelectric ceramic that convert electrical signals into mechanical vibration. Our piezoelectric ceramics are imported from Germany, the front driver and back driver are made of imported aluminum material. Our transducer has high efficiency, larger amplitude and high power, design for automation and systems builders.

  • Imported ceramic
  • Frequency from 15kHz-70kHz
  • Power from 100w-8000w
  • Titanium,aluminum,steel optional
  • OEM service welcomed
  • One year warranty
Enquiry
15-70kHz Ultrasonic Transducer/Converter
15-70kHz Ultrasonic Transducer/Converter
15-70kHz Ultrasonic Transducer/Converter
15-70kHz Ultrasonic Transducer/Converter
15-70kHz Ultrasonic Transducer/Converter
15-70kHz Ultrasonic Transducer/Converter
15-70kHz Ultrasonic Transducer/Converter
15-70kHz Ultrasonic Transducer/Converter
15-70kHz Ultrasonic Transducer/Converter
15-70kHz Ultrasonic Transducer/Converter

Product Introduction

Specification

Model Connect Screw Ceramic Dia(mm) Qty of ceramics Frequency(kHz) Capacitance(nF) Input Power(W) Max. Amplitude(μm)
Yellow Grey Black
HS-7015-4Z M20x1.5 70 4 15 12.5-14 / 17-19 2600 16
HS-6015-4Z M20x1.5 or M16x1 60 4 15 8-10 10-12 12.5-13.5 2200 16
HS-6015-6Z M20x1.5 60 6 15 14-16 / 19.5-21 2600 16
HS-5015-4Z M18x1.5 50 4 15 12-13 13-14.3 15-17 1500 12
HS-4015-4Z M16x1 40 4 15 10-11 10.5-11.5 / 700 12
HS-5520-4Z M18X1 55 4 20 10-11 10.5-11.5 14.3-20 2000 10
HS-5020-6Z M18x1.5 50 6 20 18.5-20 / 22.5-25 2000 10
HS-5020-4Z M18x1.5 50 4 20 11-13 13-15 15-17 1500 10
HS-5020-2Z M18x1.5 50 2 20 6-6.5 6.5-7 8-9 800 10
HS-4020-4Z 1/2-20UNF 40 4 20 9-10 9.5-11 / 900 8
HS-4020-2Z 1/2-20UNF 40 2 10 / 4.8-5.5 / 500 8
HS-5025-2Z M12x1 50 2 25 5-5.6 / 7.8 500 6
HS-3828-2Z 1/2-20UNF 38 2 28 3.8-4.3 / 10.5-12 500 6
HS-3828-4Z 1/2-20UNF 38 4 28 7.6-8.5 / / 800 6
HS-3028-2Z 3/8-24UNF 20 2 28 2.7-3.1 3.4-3.8 / 400 10
HS-2528-4Z M8x1 25 4 28 3.9-4.3 / / 400 10
HS-2528-2Z M8x1 or 3/8-24UNF 25 2 28 1.95-2.2 2.2-2.5 / 300 10
HS-3030-4Z M10 30 4 30 / 6.2-6.9 / 700 6
HS-3035-2Z 3/8-24UNF 30 2 35 2.7-3.1 / / 500 6
HS-3035-4Z M10x1 30 4 35 5-6.2 / / 800 4
HS-2535-2Z M8x1 25 2 35 1.9-2.2 / / 400 4
HS-2540-2Z 3/8-24UNF 25 2 40 / 2.3 / 500 4
HS-3040-4Z M10 30 4 40 5.5-6.2 / / 1000 4
HS-3050-4Z M8 30 4 50 5.5-6.2 / / 600 4
HS-1560-2Z M6x0.75 15 2 60 / / 0.7-0.8 100 4
HS-1070-2Z M4 10 2 70 / / 0.35-0.4 100 2
HS-7015-4D M20x1.5 70 4 15 12.5-14 / 17-19 2600 18
HS-6015-4D M18x1.5 60 4 15 9-10 10-11 / 2200 18
HS-6015-6D 1/2-20UNF 60 6 15 19-20.5 / 23-25 2600 18
HS-5015-6D 1/2-20UNF 50 6 15 17-19 / 23-25 2200 16
HS-5020-4DS 1/2-20UNF 50 4 20 11 12-13.5 / 1300 12
HS-5020-4D 1/2-20UNF 50 4 20 11 12-13.5 14.5-16 1500 12
HS-5020-6D 1/2-20UNF 50 6 20 19-21 / 22.5-25 2000 12
HS-4020-6D 1/2-20UNF 40 6 20 13.5 / / 1500 10
HS-4020-4D 1/2-20UNF 40 4 20 8.-9.3/9.5-10.5 10-11 10.5-11.5 900 10
HS-3020-6D 3/8-24UNF 30 6 20 8-9 / / 600 9
HS-3030-4D M8 or M8x1 30 4 30 / 6.2-6.9 / 800 8
HS-3535-2D M8x1 35 2 35 / / 4.5-5 600 6
HS-3535-4D M8x1 35 4 35 6.6-7.4 / 9-10 1000 6
HS-3035-4D 1/2-20UNF 30 4 35 5.5-6.2 / 9.2-10.2 800 6
HS-2535-4D M8 25 4 35 3.9-4.3 / / 500 6
HS-3040-2D M8 30 2 40 / 3.4-3.8 / 500 6
HS-2540-4D M8 25 4 40 4.5-5.3 / / 500 5
HS-2040-2D M8 20 2 40 1.1-1.3 1.15-1.35 / 300 4
HS-5020-8Z 1/2-20UNF 50 8 20 28-30 / / 6000 20

Description

Piezoelectric transducers are industrial devices that convert electrical energy into acoustic energy and vice versa through the piezoelectric and piezoelectric effects, primarily used in the field of power ultrasonics. As the critical component of transducers, we insist on selecting top-tier piezoelectric ceramics. Ultrasonic transducers are key components in ultrasonic welding/cutting/sealing/bonding/liquid processing equipment, with their performance determining the characteristics of the entire machine. We offer both bare transducers and complete transducer assemblies with housings and boosters. We are currently developing customized transducers for OEMs. Inquiries regarding OEM transducer business are welcome.

ultrasonic transducer

Application

  1. Plastic Welding
  2. Metal Welding<
  3. Plastic/Rubber/Food Cutting
  4. Nonwoven fabric/Texteile Sealing
  5. Homogenization/Emulsification/Dispersion/Extraction
  6. Atomization, Spraying
  7. Ultrasonic Machining/Milling/Drilling/Turning/Grinding
  8. Medicine/Healthcare
  9. Wire Embedding

ultrasonic converter

Related Products

Reliable and efficient energy storage systems for various applications, ensuring continuous power and cost savings.

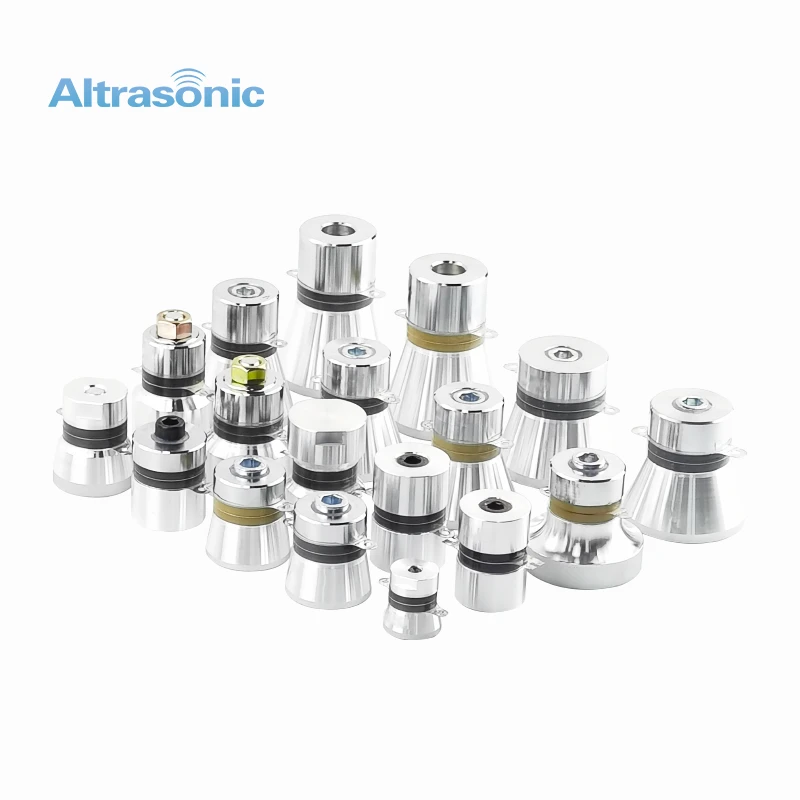

Ultrasonic Cleaning Transducer/Converter
