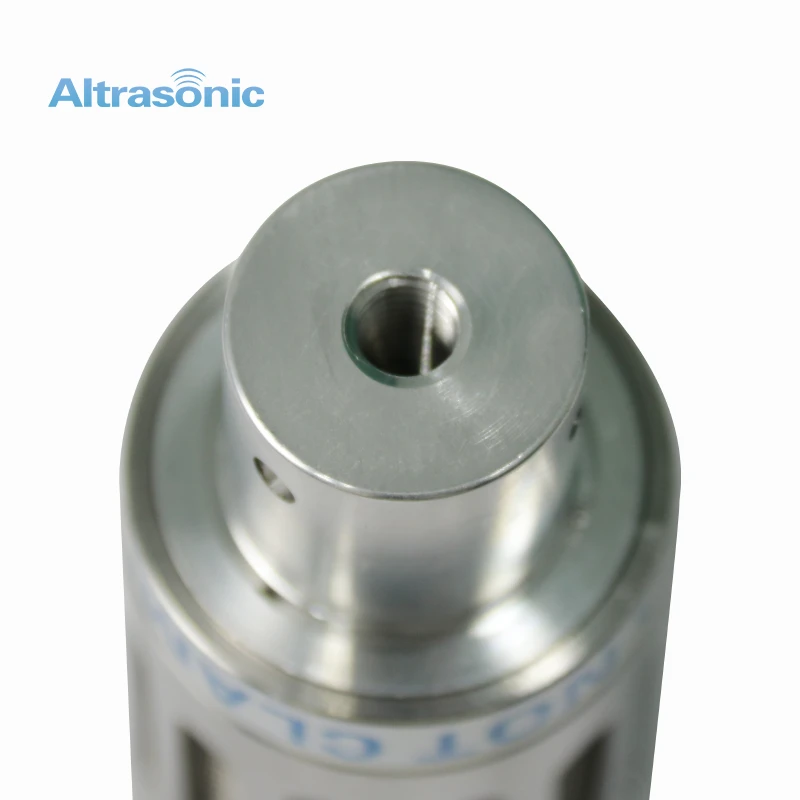

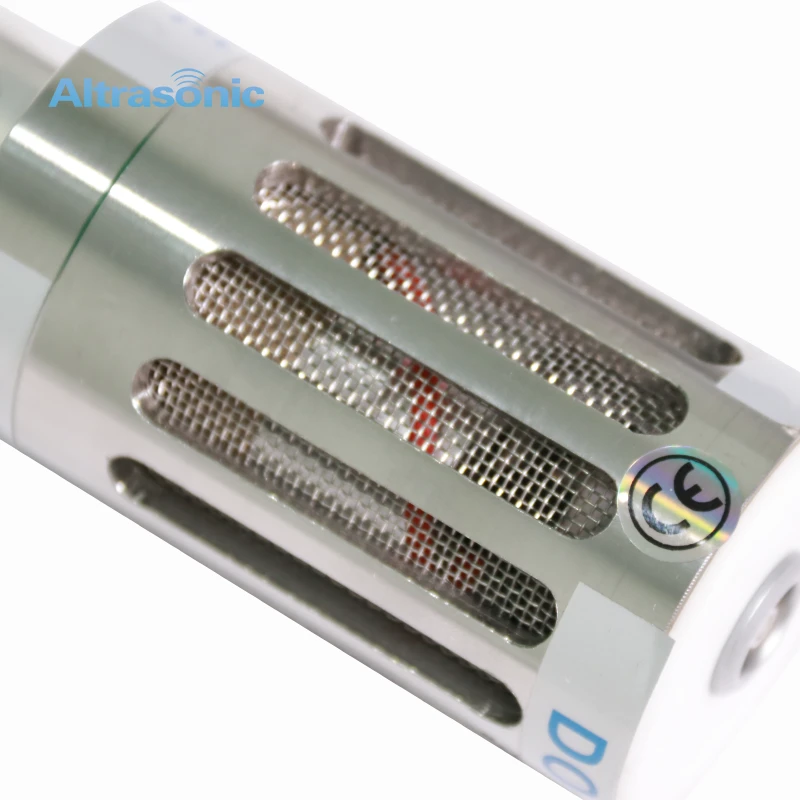

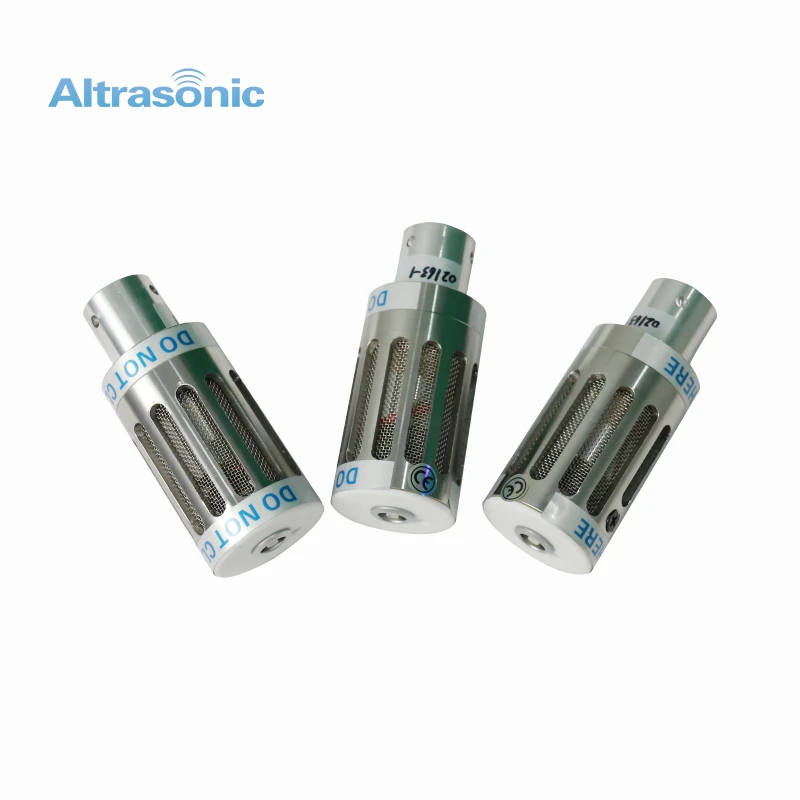

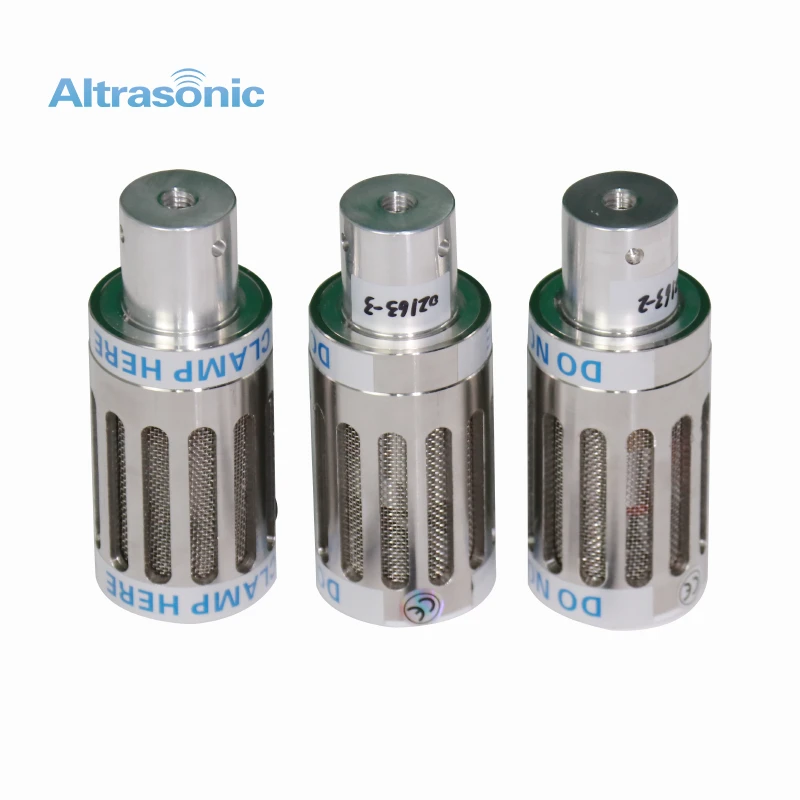

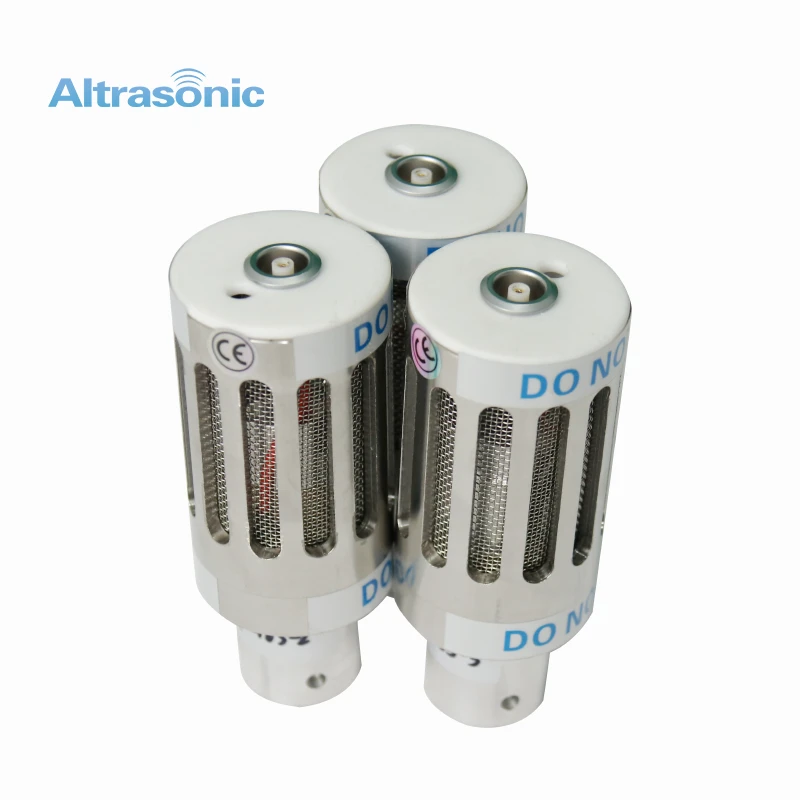

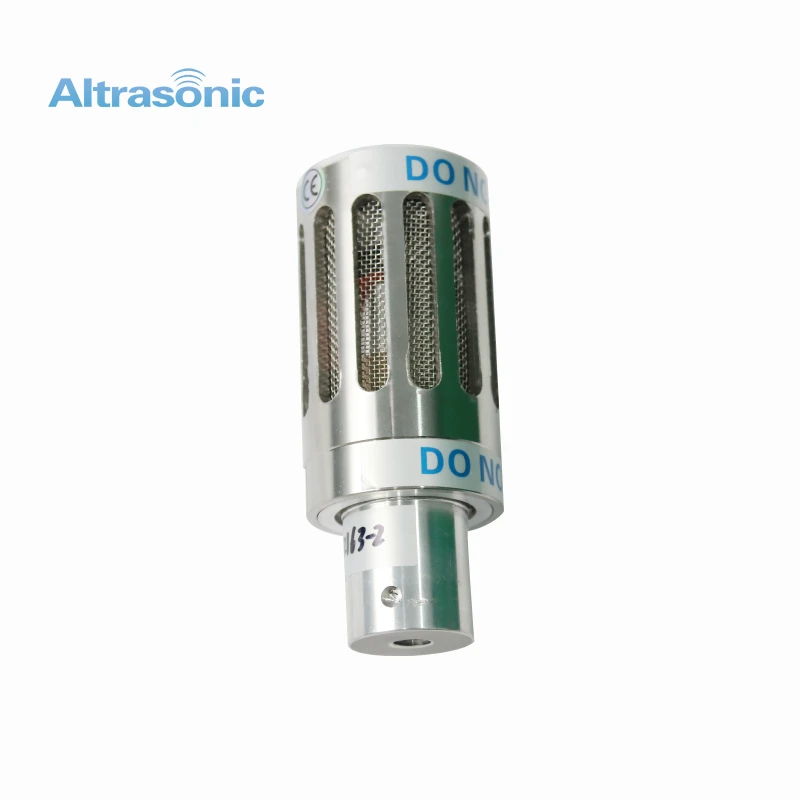

35kHz 900-1200w Replacement Ultrasonic Transducer/Converter Rinco C35-12

Replacement ultrasonic transducer converter for Rinco 35kHz converter C35-12. Compatible with all Rinco 35kHz welders, electrical motion2-servo driven ultrasonic welder, standerd 745 welder, easy 745 welder, 35kHz ADG, AGM Pro, AGM 2, Ecoline, RDG, SDG ultrasonic generators.

  • High-density piezoelectric ceramics
  • High mechanical quality factor
  • Excellent electroacoustic conversion efficiency
  • High output amplitude
  • Perfect replacement for Rinco C35-12
Enquiry
Replacement Ultrasonic Transducer Rinco C35-12
Replacement Ultrasonic Transducer Rinco C35-12
Replacement Ultrasonic Transducer Rinco C35-12
Replacement Ultrasonic Transducer Rinco C35-12
Replacement Ultrasonic Transducer Rinco C35-12
Replacement Ultrasonic Transducer Rinco C35-12
Replacement Ultrasonic Transducer Rinco C35-12
Replacement Ultrasonic Transducer Rinco C35-12
Replacement Ultrasonic Transducer Rinco C35-12
Replacement Ultrasonic Transducer Rinco C35-12

Product Introduction

Specification

Model HS-R35
Frequency: 35kHz
Output power:  900-1200 watt
Joint bolt: M8
Piezoceramics diameter: 25mm
Quantity of piezoceramics: 2pcs
Amplitude: 12μm
Size: 100*40
Application: Plastic welding

Description

The HS-R35 Ultrasonic Converter/Transducer direct replacement for Rinco 35kHz converter C35-12 that delivers lower cost, rugged quality and superior value. Suitable for all types Rinco generatorof the relevant frequency 35kHz.
All of the parts are all new.The parts are made from certified materials in tightly controlled manufacturing processes, assembled andtested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

Rinco C35-12 Converter

Advantage

  1. HS-R35 converters are suitable for the operation in Rinco standard machines and special actuators.
  2. Developed specifically for the design and assembly of ultrasonic welding machines and specialised equipment.
  3. With its wide range of applications, it is the ideal converter for a variety of applications.
  4. Reliable, heavy duty design.
  5. Lemo ERA.2S coaxial cable connector.
  6. 6mm air cooling, if used in continuous operation or with high temperatures, then air cooling should be used.

Rinco C35-12 Transducer
