20kHz 1200-3000w Replacement Ultrasonic Transducer/Converter Rinco C20-12/C20-10

Replacement ultrasonic transducer converter for Rinco 20kHz converter C20-12, C20-10. Compatible with all Rinco 20kHz welders, electrical motion2-servo driven ultrasonic welder, standerd series welders, easy series welders, 20kHz ADG, AGM Pro, AGM 2, RDG, SDG, XDG2 ultrasonic generators.

  • High-density piezoelectric ceramics
  • High mechanical quality factor
  • Excellent electroacoustic conversion efficiency
  • High output amplitude
  • Perfect replacement for Rinco C20-12, C20-10
Enquiry

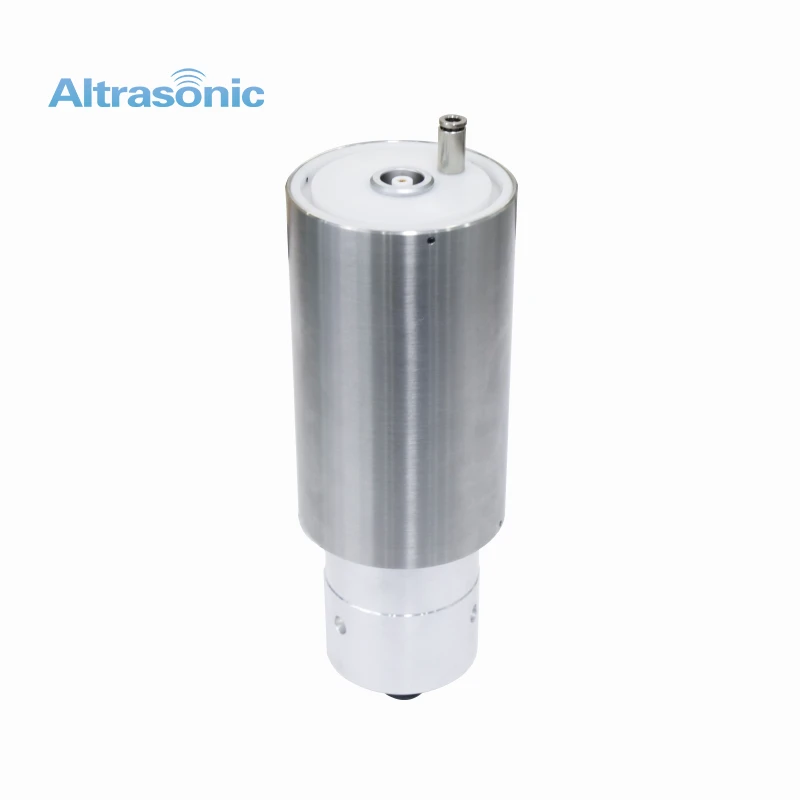

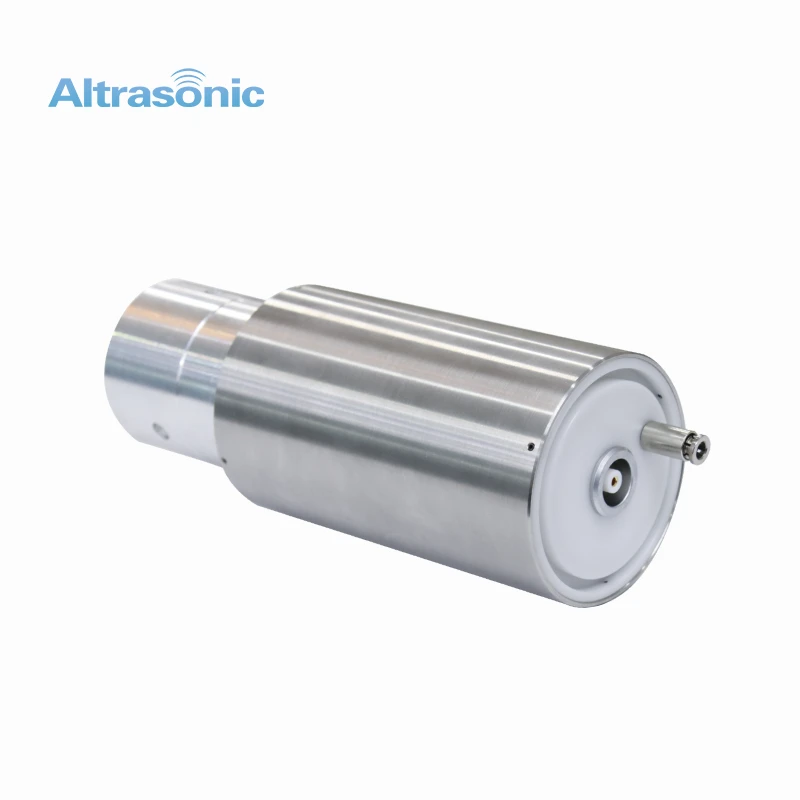

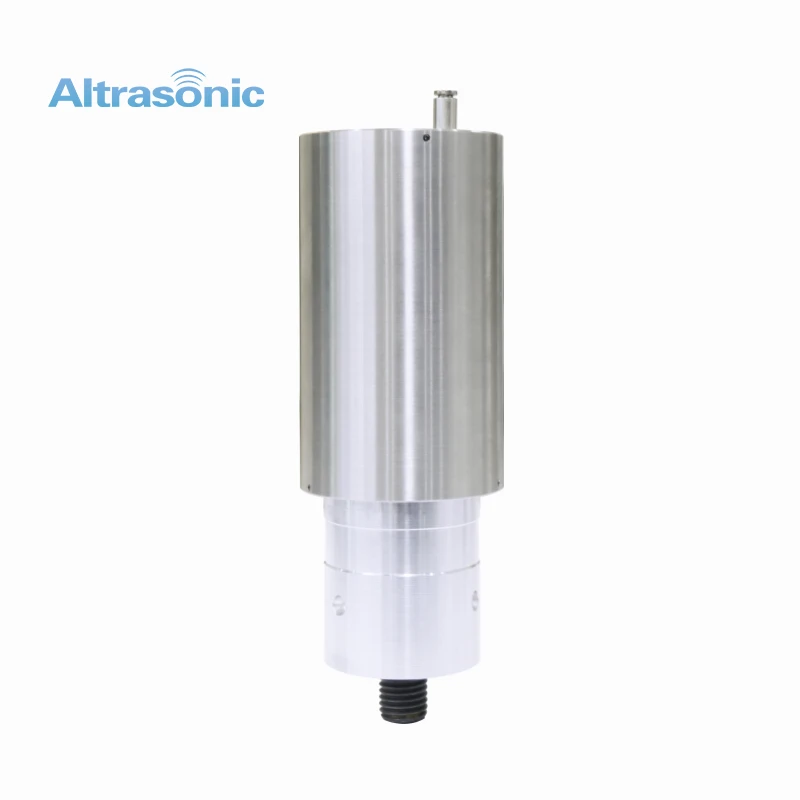

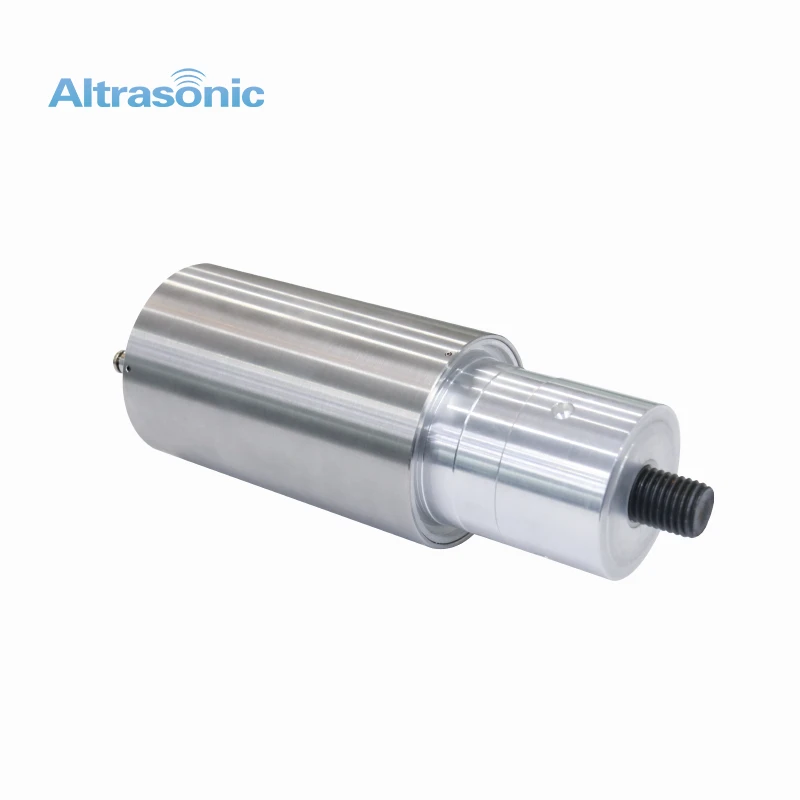

Replacement Ultrasonic Transducer Rinco C20-12/C20-10
Replacement Ultrasonic Transducer Rinco C20-12/C20-10
Replacement Ultrasonic Transducer Rinco C20-12/C20-10
Replacement Ultrasonic Transducer Rinco C20-12/C20-10
Replacement Ultrasonic Transducer Rinco C20-12/C20-10
Replacement Ultrasonic Transducer Rinco C20-12/C20-10
Replacement Ultrasonic Transducer Rinco C20-12/C20-10
Replacement Ultrasonic Transducer Rinco C20-12/C20-10

Product Introduction

Specification

Model HS-R20
Frequency: 20kHz
Output power:  1200-3000 watt
Joint bolt: M16*2
Piezoceramics diameter: 50mm
Quantity of piezoceramics: 2pcs
Capacitance: 6.4-7.5nf
Amplitude: 20μm
Size: 167*65
Application: Plastic welding

Description

The HS-R20 Ultrasonic Converter/Transducer direct replacement for Rinco 20kHz converter (C20-12, C20-10) that delivers lower cost, rugged quality and superior value. Suitable for all types Rinco generatorof the relevant frequency 20kHz.
All of the parts are all new.The parts are made from certified materials in tightly controlled manufacturing processes, assembled andtested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

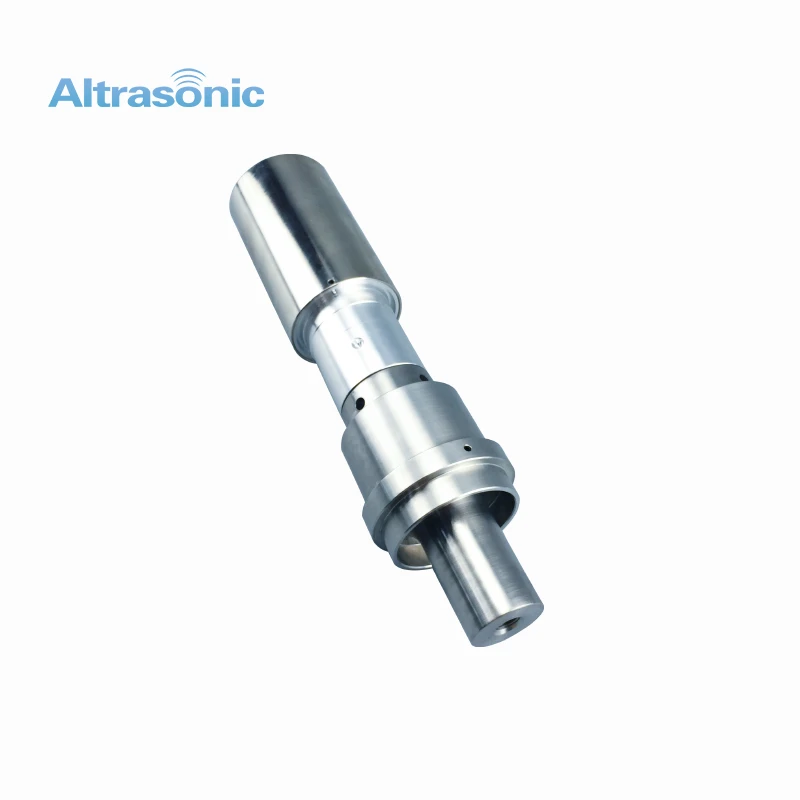

Rinco C20-12 Converter with Booster

Advantage

  • HS-R20 converters are suitable for the operation in Rinco standard machines and special actuators.
  • Developed specifically for the design and assembly of ultrasonic welding machines and specialised equipment.
  • With its wide range of applications, it is the ideal converter for a variety of applications.
  • Reliable, heavy duty design.

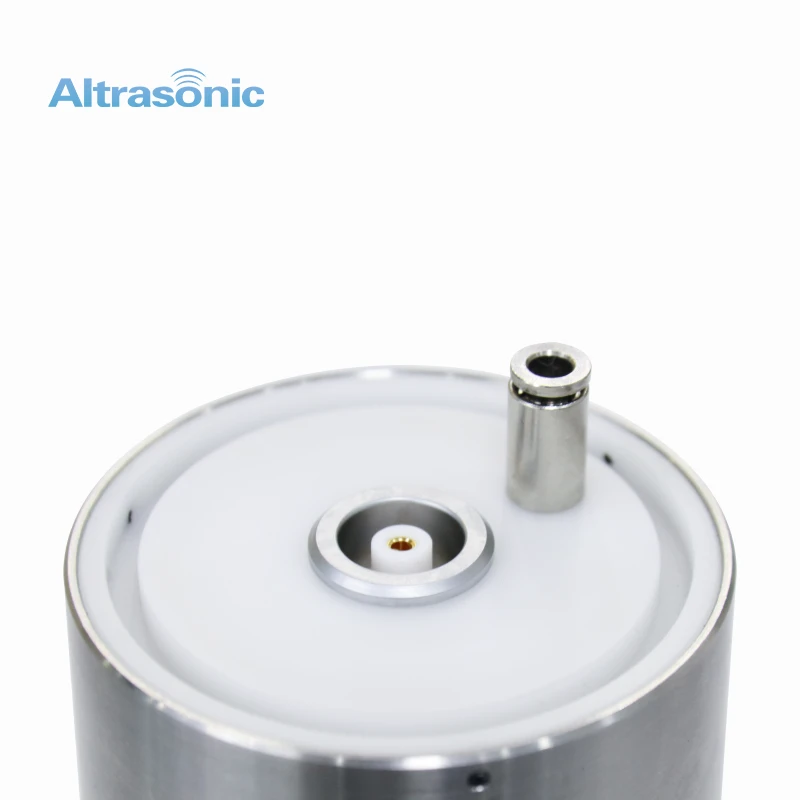

  • Lemo ERA.2S coaxial cable connector.
  • 6mm air cooling, if used in continuous operation or with high temperatures, then air cooling should be used.

Rinco C20-12 Transducer



Related Products

Reliable and efficient energy storage systems for various applications, ensuring continuous power and cost savings.
Replacement Ultrasonic Transducer Rinco C20-12/C20-10

Replacement Ultrasonic Transducer Rinco C20-12/C20-10

Replacement ultrasonic transducer converter for Rinco 20kHz converter C20-12, C20-10. Compatible with all Rinco 20kHz welders, electrical motion2-serv...
Read More

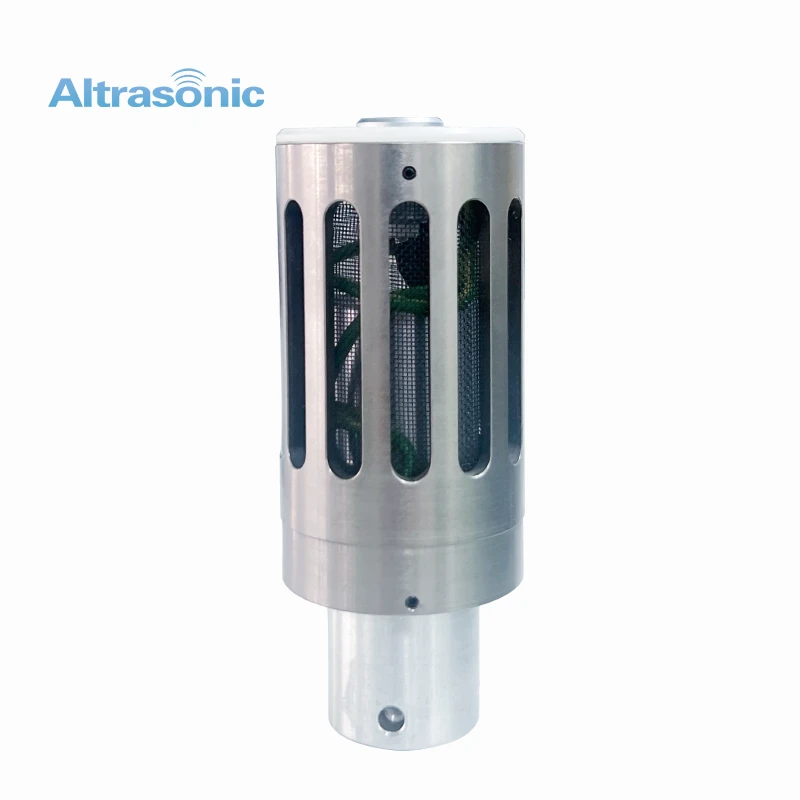

Replacement Ultrasonic Transducer Rinco C35-12
