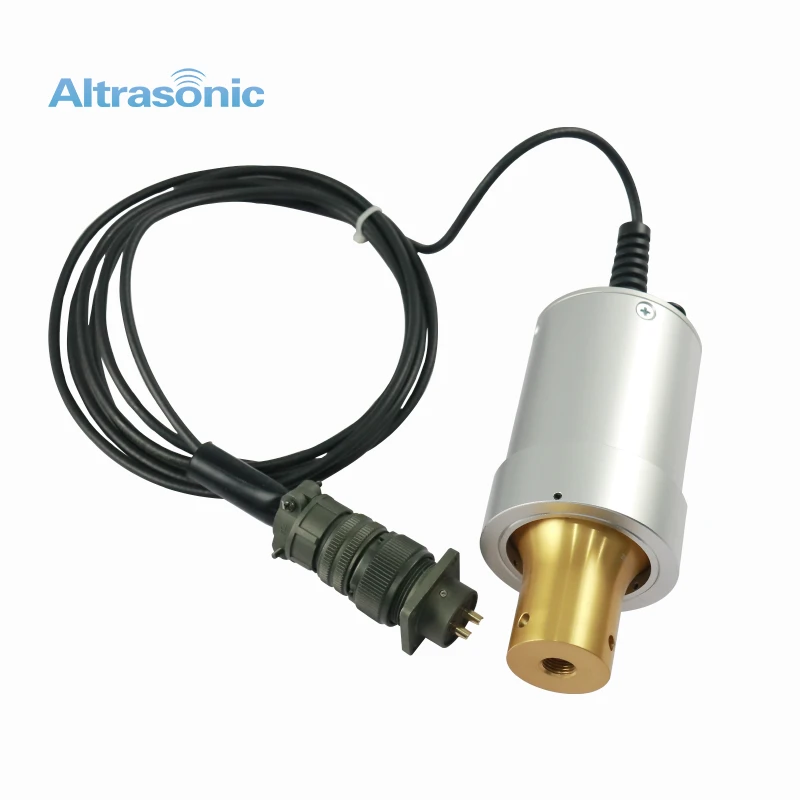

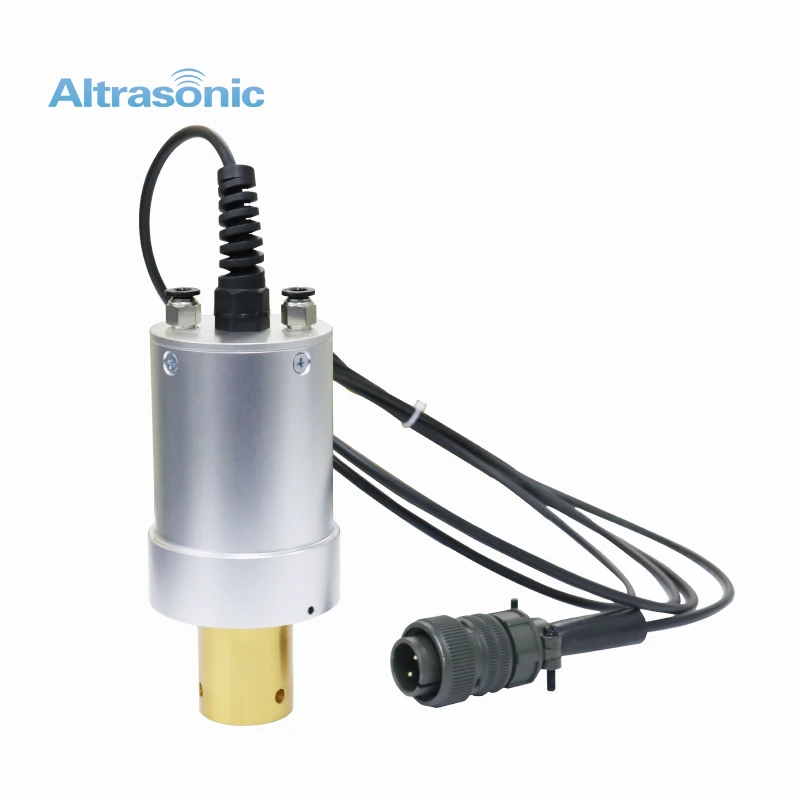

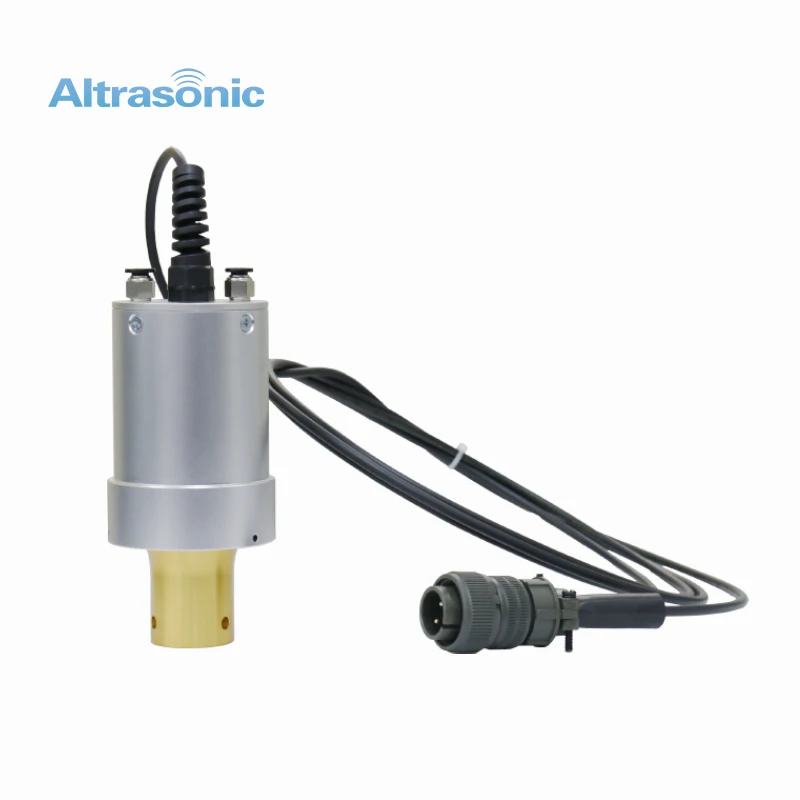

20kHz 1000-3000W Replacement Ultrasonic Transducer/Converter/Probe Dukane 41S30

Replacement ultrasonic transducer converter for Dukane Heavy Duty Sealed Probe 41S30. Compatible with all Dukane 20kHz model generators. Transducer power handling capabilities from 1,000 to 3,000 watts covers all application requirements.

  • Sealed stainless steel enclosure designed to be water and vapor proof to prevent internal electrical short circuits or discharges.
  • Input and output connections let cooling air pass over internal piezoceramics to prevent overheating
  • CE approved, certified quality, warranty support
  • Perfect replacement for Dukane 41S30
Enquiry
Replacement Ultrasonic Transducer Dukane 41S30
Replacement Ultrasonic Transducer Dukane 41S30
Replacement Ultrasonic Transducer Dukane 41S30
Replacement Ultrasonic Transducer Dukane 41S30
Replacement Ultrasonic Transducer Dukane 41S30
Replacement Ultrasonic Transducer Dukane 41S30
Replacement Ultrasonic Transducer Dukane 41S30
Replacement Ultrasonic Transducer Dukane 41S30
Replacement Ultrasonic Transducer Dukane 41S30
Replacement Ultrasonic Transducer Dukane 41S30
Replacement Ultrasonic Transducer Dukane 41S30
Replacement Ultrasonic Transducer Dukane 41S30

Product Introduction

Specification

Model HS-D41S30
Frequency: 20kHz
Output power:  1000-3000 watt
Joint bolt: 1/2-20 UNF
Piezoceramic Diameter:  50mm
Qty of piezoceramics: 4pcs
Capacitance: 11000pf
Amplitude: 20μm
Size: 152*75
Application: Plastic welding machine

Description

The HS-D41S30 Ultrasonic Converter/Transducer direct replacement for the Dukane Heavy Duty Sealed Probe 41S30 that delivers lower cost, rugged quality and superior value.Designed for washdown environments such as aseptic packaging and food processing. Materials are specifically selected for clean-in-place processing applications; non-polluting metals will not corrode.

All Dukane replacement transducers utilize the highest quality piezoelectric ceramics. They are tested and assembled using our special manufacturing process to ensure durability and long-term reliability. Sealed ultrasonic transducer housings are designed for use in food and packaging environments. They are set up to use compressed air for internal cooling, making them ideal for continuous slitting, stitching and sealing of hot liquids as well as fabrics and films.

dukane 41S30 transducer

Advantage

  1. Stainless steel material, Sealed housings design.

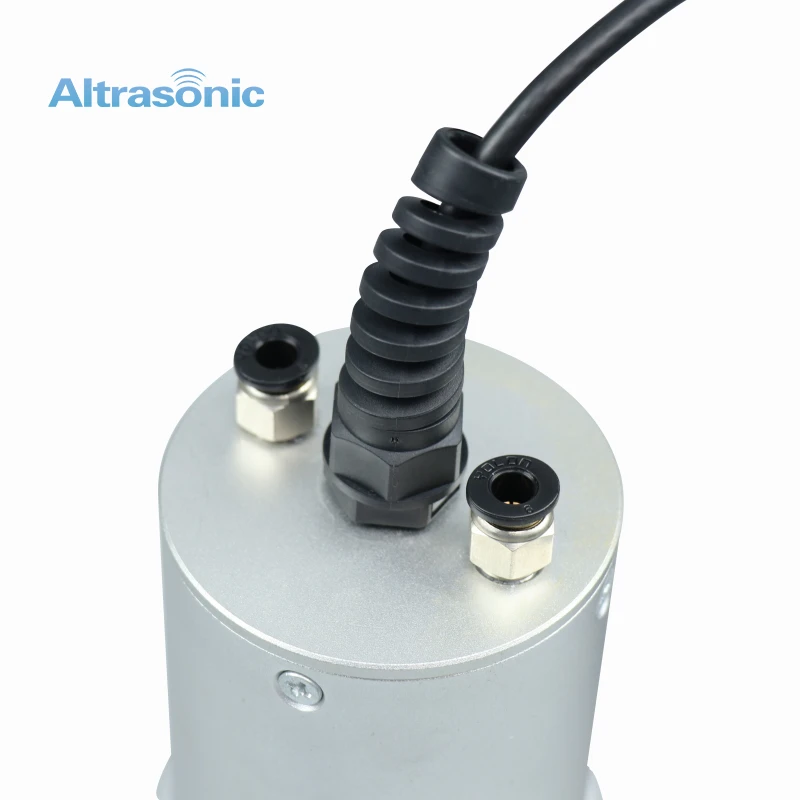

  2. Cooling fitting for 0.25"(6mm) OD tube on rear.
  3. Good heat resistance, can be used in a wide range of temperature, long life and high reliability.

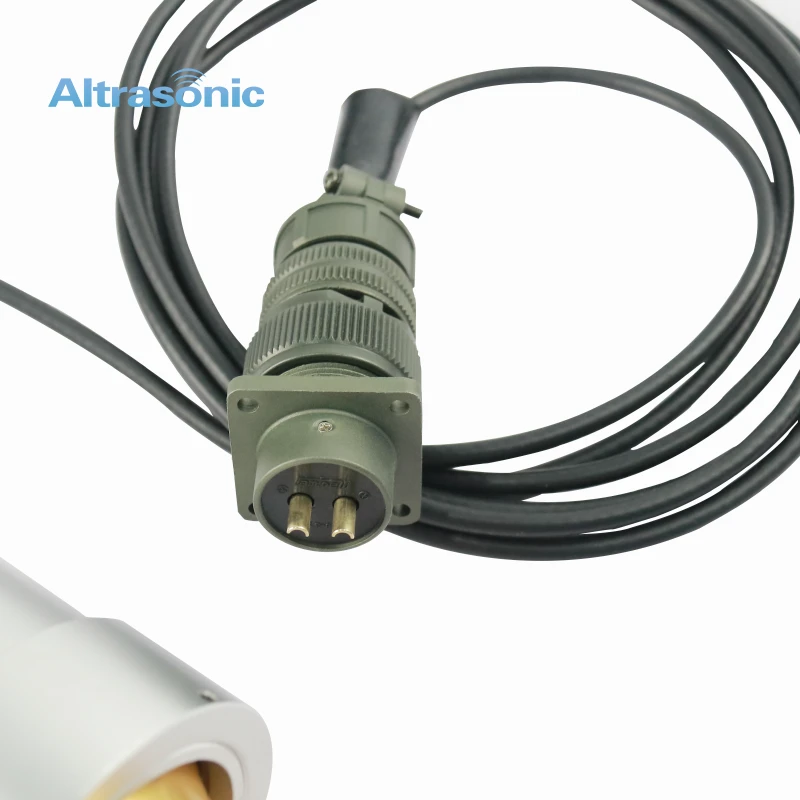

  4. Rear-mounted 1.5m (customizable length) flexible ultrasound cable with 2-PIN MIL-SPEC connector (Plug & Receptacl available) allows cables to be interconnected for easy repair and maintenance; provides good protection for cables.
  5. Also available with BNC/SHV connector for ultrasound cable.

dukane 41S30 connector
