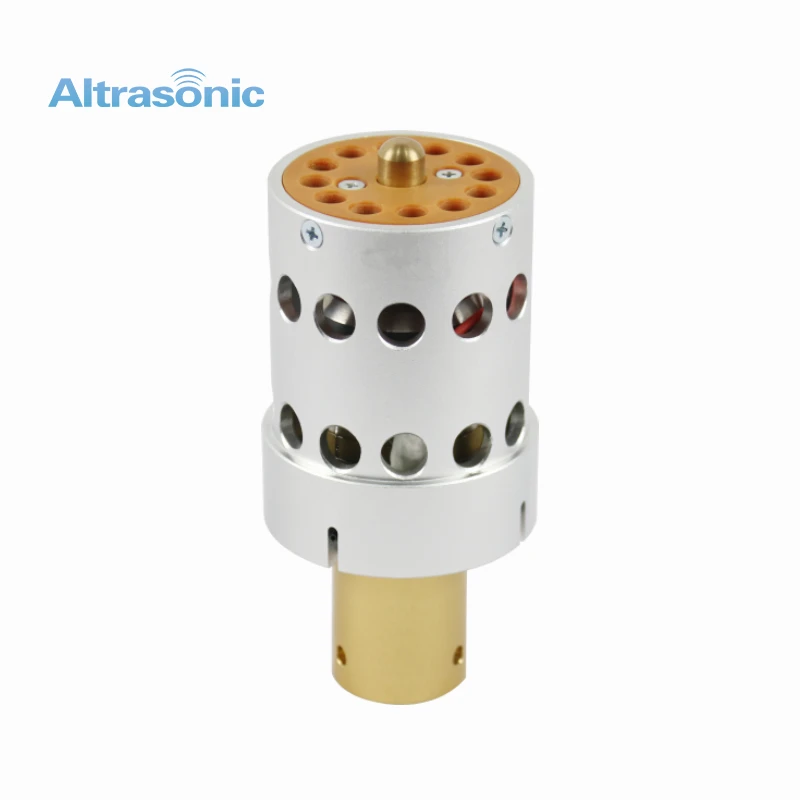

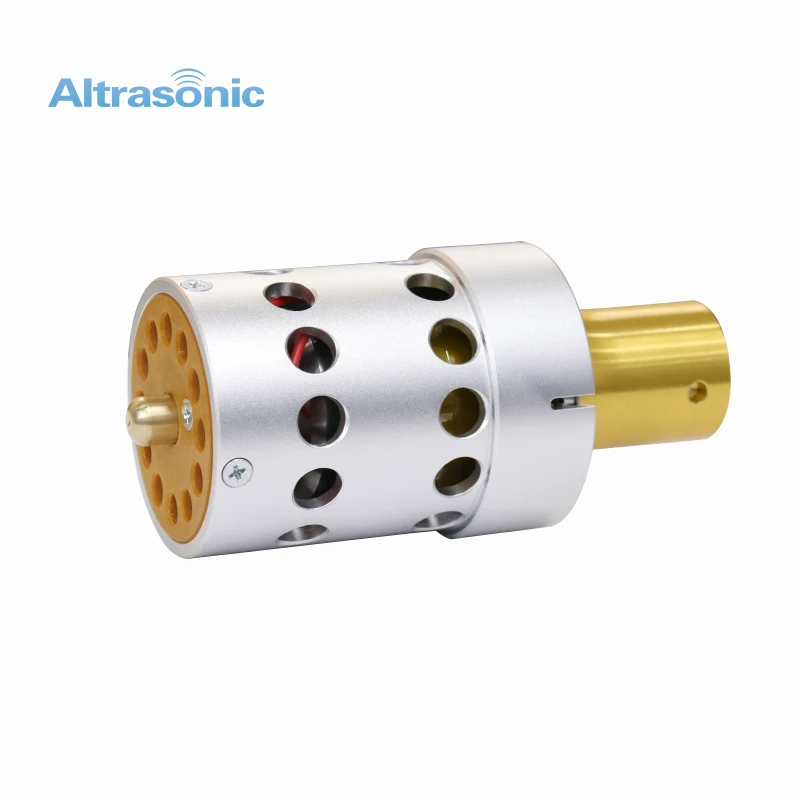

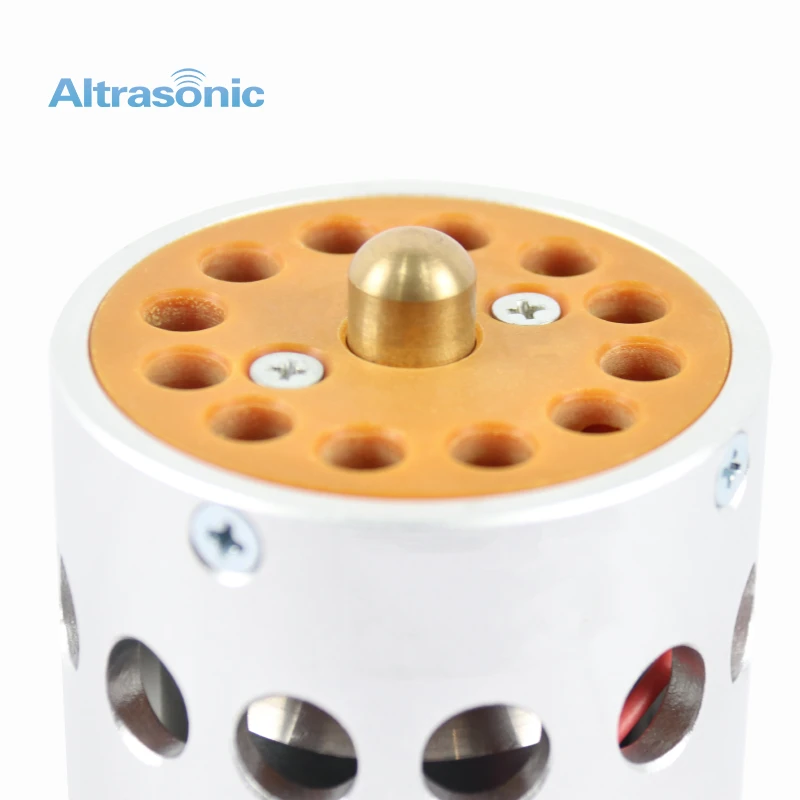

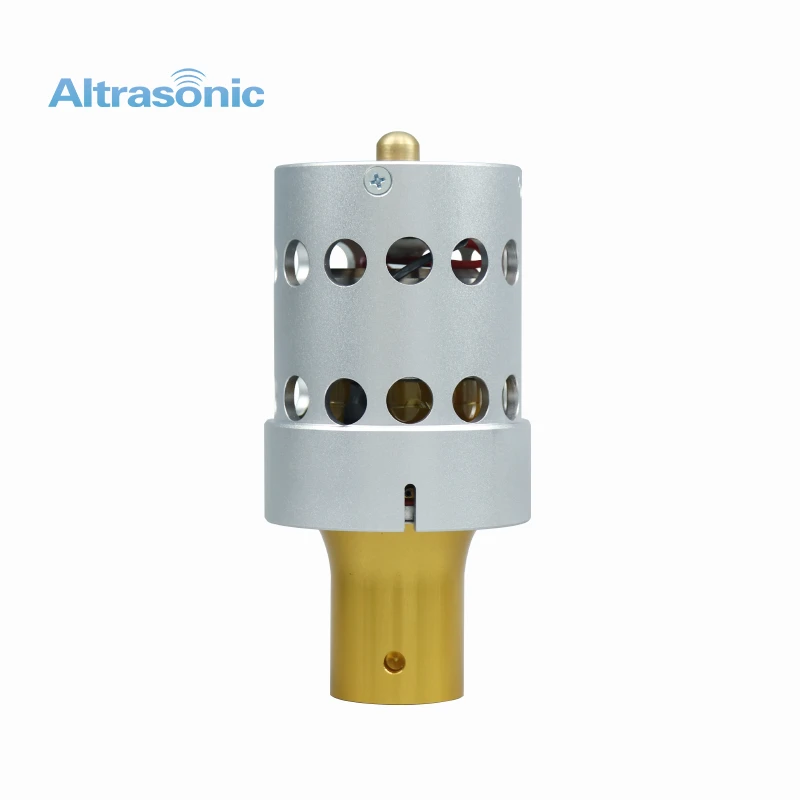

20kHz 2000W Replacement Ultrasonic Transducer/Converter/Probe Dukane 110-3122

Replacement ultrasonic transducer converter for Dukane Heavy Duty Probe 110-3122. Compatible with almost all Dukane 20 kHz model generators, 20kHz Ultra Series, DPC, iQ thruster, heavy-duty press systems and ultrasonic welders models 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 press/thruster, Dukane 210, 255 Press.

  • Adoption of high-end piezoelectric ceramics
  • Highly controlled and repeatable manner to duplicate the performance of the OEM models
  • Certified quality, warranty support
  • Perfect replacement for Dukane 110-3122
Enquiry
Replacement Ultrasonic Transducer Dukane 110-3122
Replacement Ultrasonic Transducer Dukane 110-3122
Replacement Ultrasonic Transducer Dukane 110-3122
Replacement Ultrasonic Transducer Dukane 110-3122
Replacement Ultrasonic Transducer Dukane 110-3122
Replacement Ultrasonic Transducer Dukane 110-3122
Replacement Ultrasonic Transducer Dukane 110-3122
Replacement Ultrasonic Transducer Dukane 110-3122
Replacement Ultrasonic Transducer Dukane 110-3122
Replacement Ultrasonic Transducer Dukane 110-3122

Product Introduction

Specification

Model HS-D110-3122
Frequency: 20kHz
Output power:  2000 watt
Joint bolt: 1/2-20 UNF
Piezoceramic Diameter:  50mm
Qty of piezoceramics: 4pcs
Capacitance: 11-17 nf
Amplitude: 20μm
Size: 149*75.5
Application: Plastic welding machine

Description

The HS-D110-3122 Ultrasonic Converter/Transducer direct replacement for the Dukane Heavy Duty Probe 110-3122 that delivers rugged quality and superior value.

These transducers are manufactured using highly controlled and repeatable processes to replicate the performance of original equipment. Parts are made from certified materials, produced using strictly controlled manufacturing processes, and assembled and tested using precision calibrated equipment in a climate-controlled environment. They are then subjected to appropriate aging treatment and retested to ensure performance consistent with original equipment components. The entire process is carried out in ISO-certified facilities. Most importantly, durability is guaranteed due to the strict control of the manufacturing process.

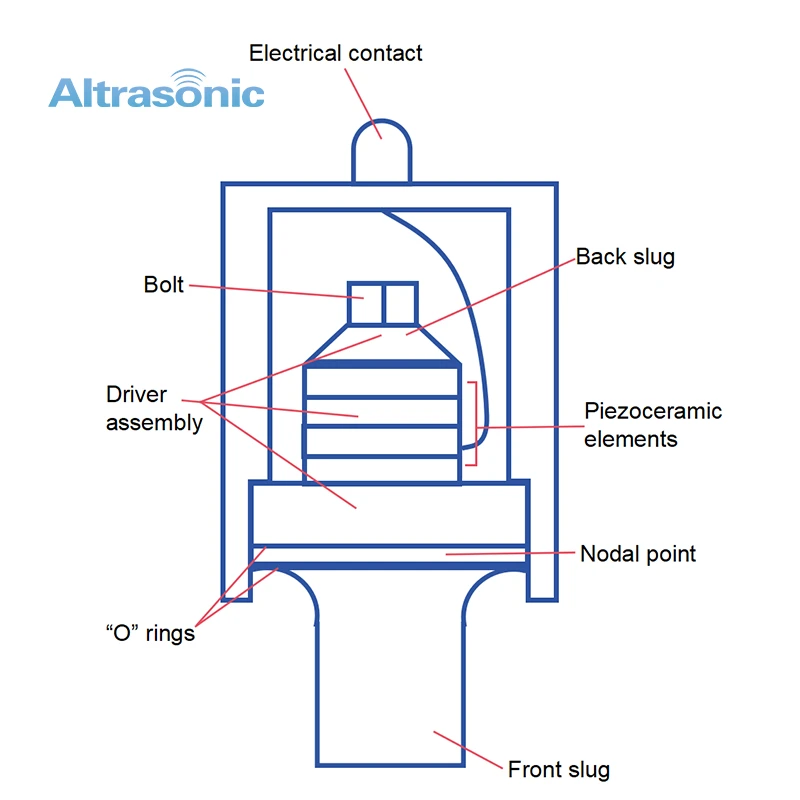

dukane 110-3122 transducer disign

Advantage

  1. Stainless steel material.
  2. After assembly, the transducers will be tested one by one with aging treatment before testing and final assembly to ensure excellent performance of each transducer.
  3. Good heat resistance, can be used in a wide range of temperature, long life and high reliability.
  4. Optional air cooling inlet, ultrasonic connection port (rear/side).
  5. CE certificatione.

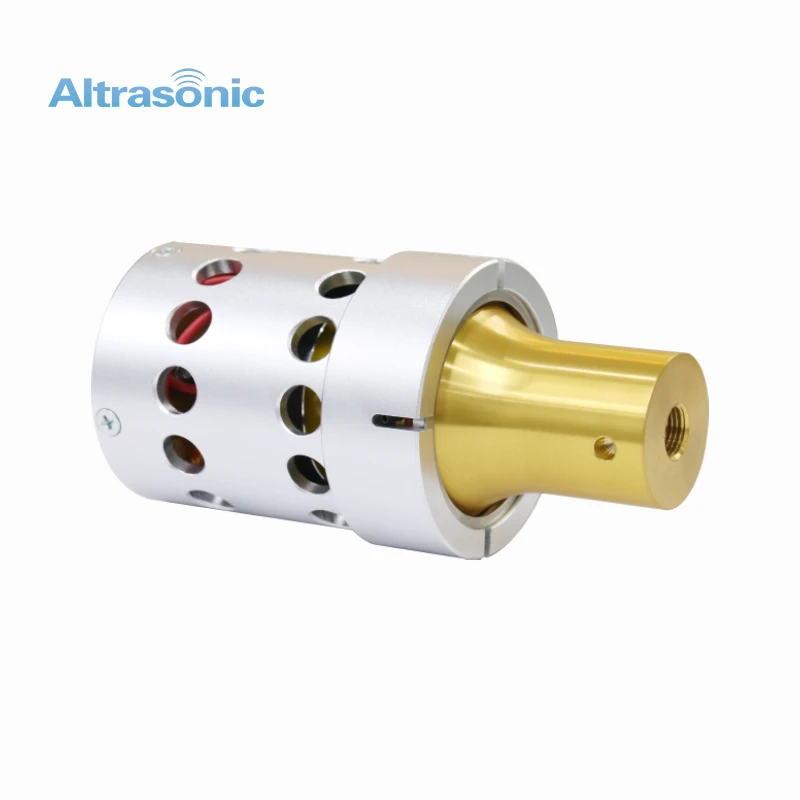

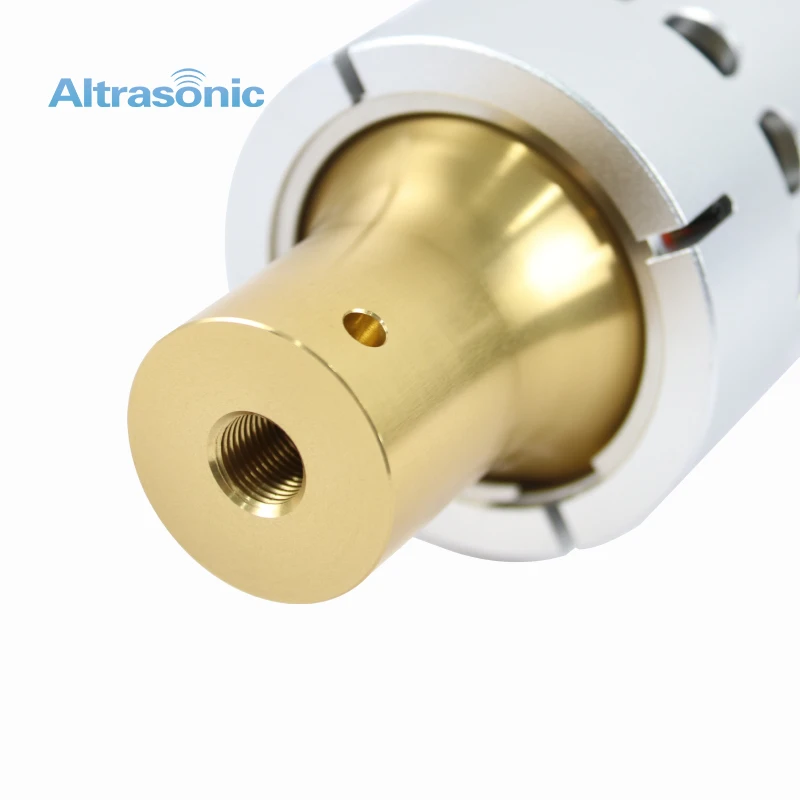

dukane 110-3122 converter

Related Products

Reliable and efficient energy storage systems for various applications, ensuring continuous power and cost savings.

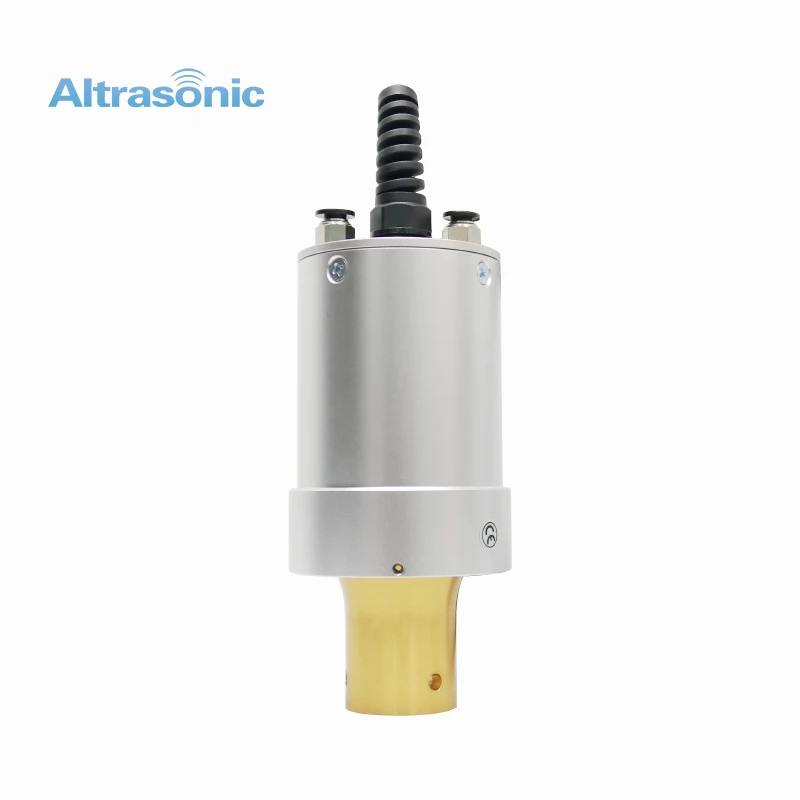

Replacement Ultrasonic Transducer Dukane 41S30

Replacement Ultrasonic Transducer Dukane 41S30

Replacement ultrasonic transducer converter for Dukane Heavy Duty Sealed Probe 41S30. Compatible with all Dukane 20kHz model generators. Transducer po...
Read More
Replacement Ultrasonic Transducer Dukane 110-3122

Replacement Ultrasonic Transducer Dukane 110-3122

Replacement ultrasonic transducer converter for Dukane Heavy Duty Probe 110-3122. Compatible with almost all Dukane 20 kHz model generators, 20kHz Ult...
Read More

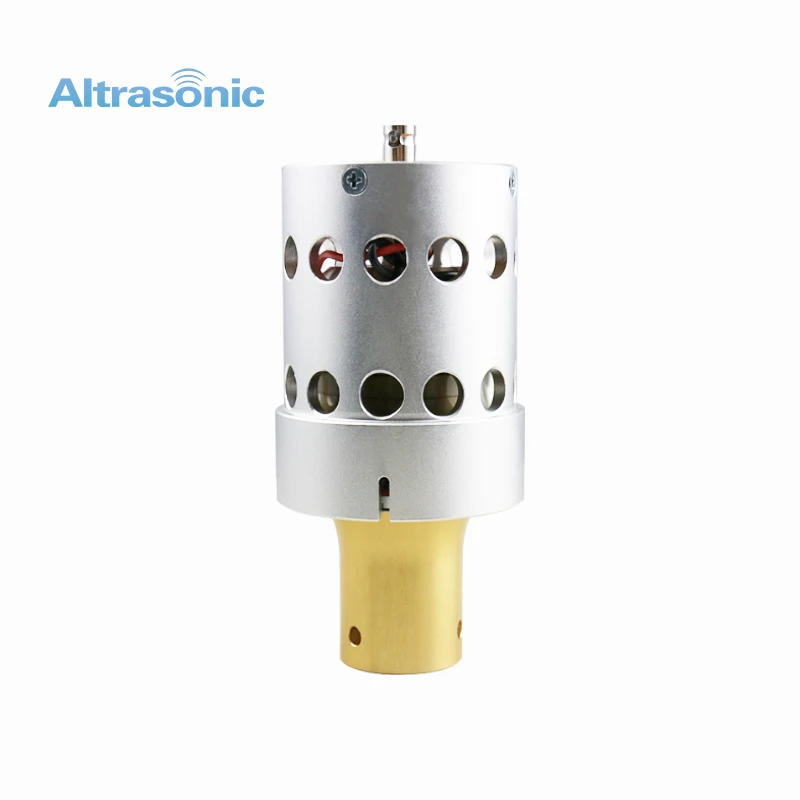

Replacement Ultrasonic Transducer Dukane 41C30
