Replacement ultrasonic transducer converter for Telsonic 35kHz converter SE3512. Compatible with all Telsonic 35kHz welders, USP ultrasonic welding system, 35kHz ultrasonic generators, Ultrasonic hand welding set HandyStar, Generator SG3510 Handystar.
| Model | HS-TL35 |
|---|---|
| Frequency: | 35kHz |
| Output power: | 800-1200 watt |
| Joint bolt: | M8 |
| Piezoceramics diameter: | 25mm |
| Quantity of piezoceramics: | 4pcs |
| Capacitance: | 2.1-2.3/4.2-4.5nf |
| Amplitude: | 6-8μm |
| Application: | Plastic welding |

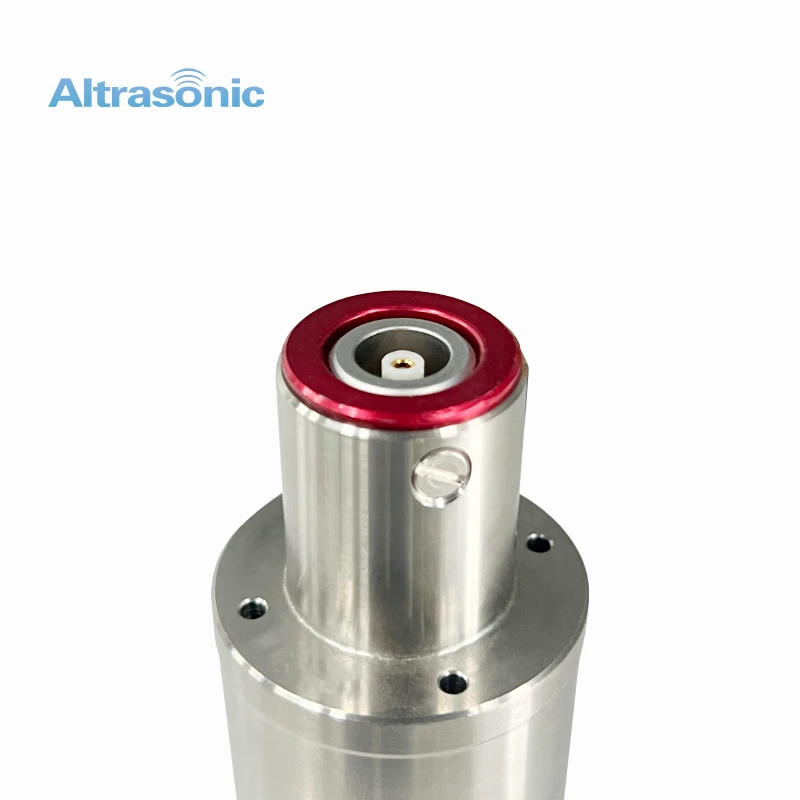

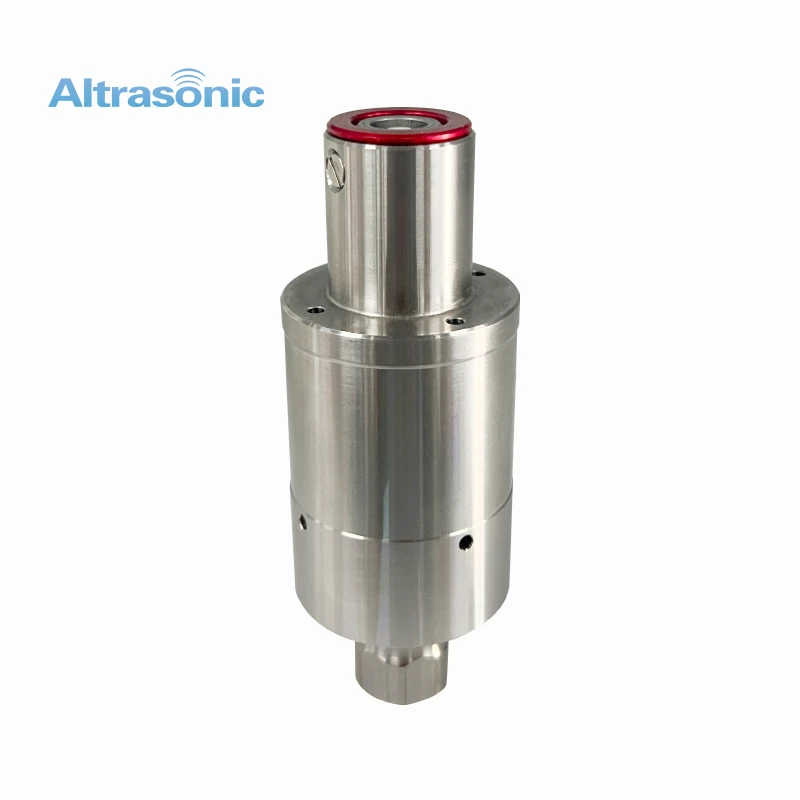

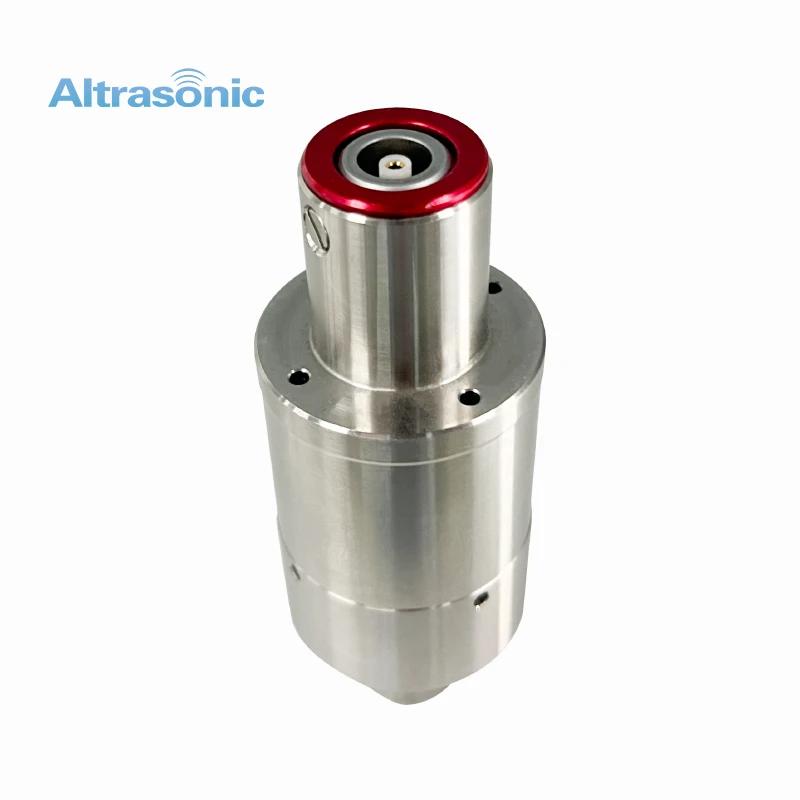

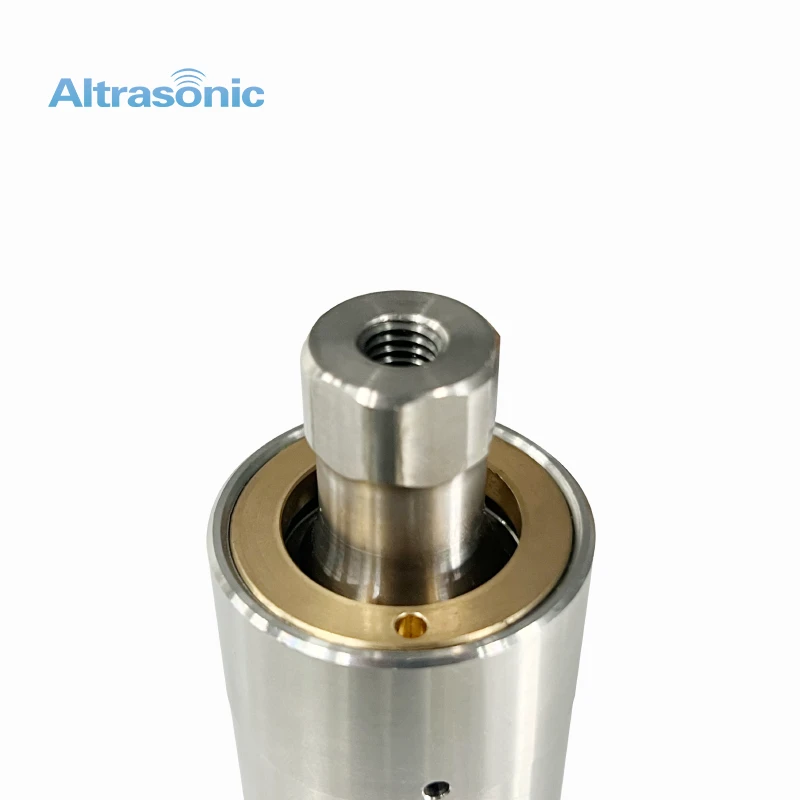

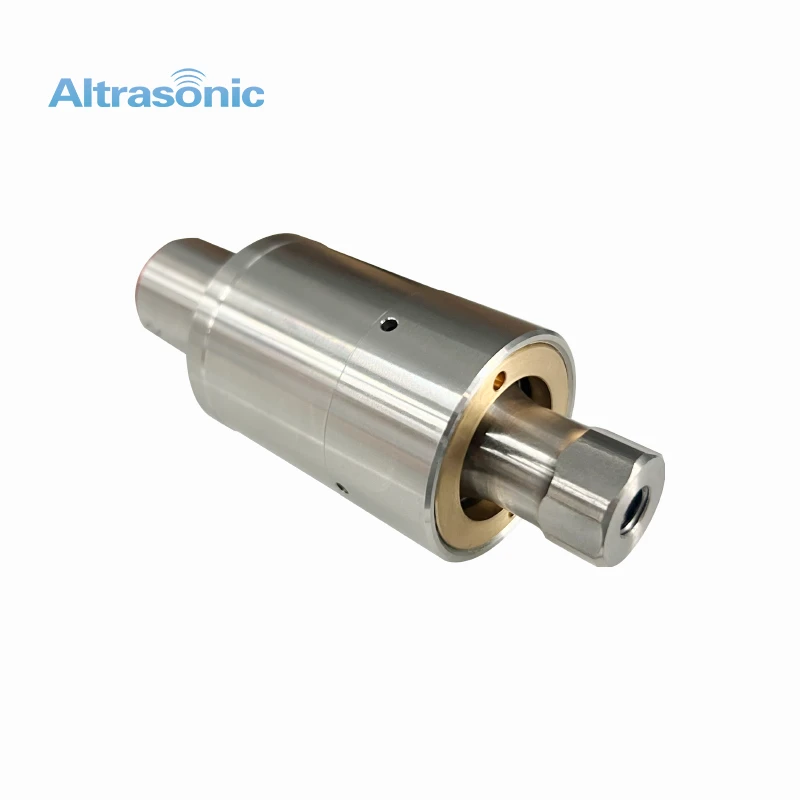

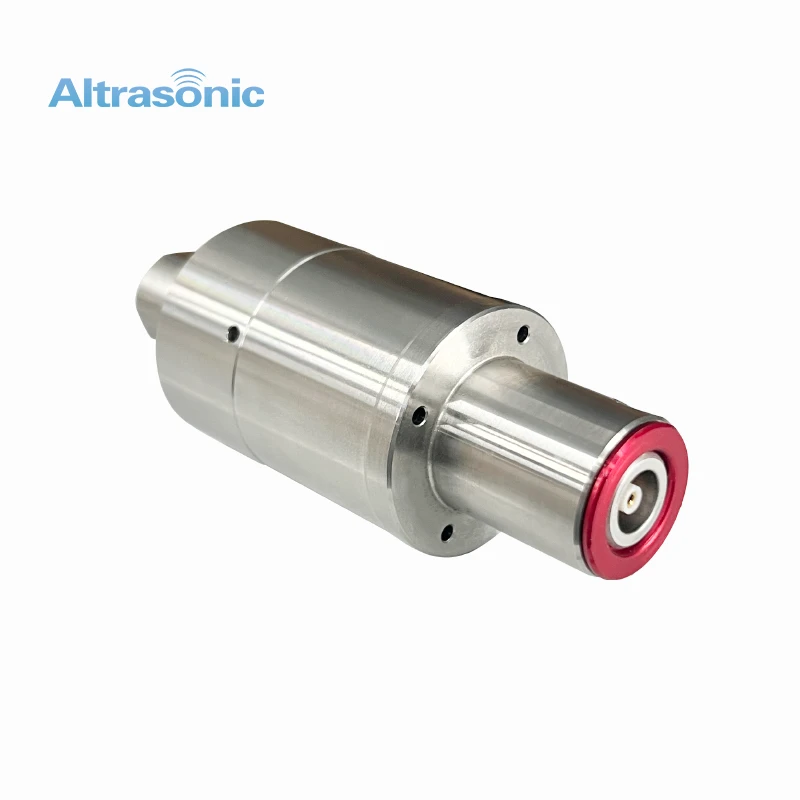

The HS-TL35 Ultrasonic Converter/Transducer direct replacement for Telsonic 35kHz converter (SE3512) that delivers lower cost, rugged quality and superior value. Suitable for all types Telsonic generators of the relevant frequency 35kHz welders, USP ultrasonic welding system, 35kHz ultrasonic generators, Ultrasonic hand welding set HandyStar, Generator SG3510 Handystar.
The replacement converters of the Telsonic SE series are renowned for their high quality and reliability. For use in the food and medical fields, versions made of chemically resistant materials and with protection rating of up to IP67 are available.
