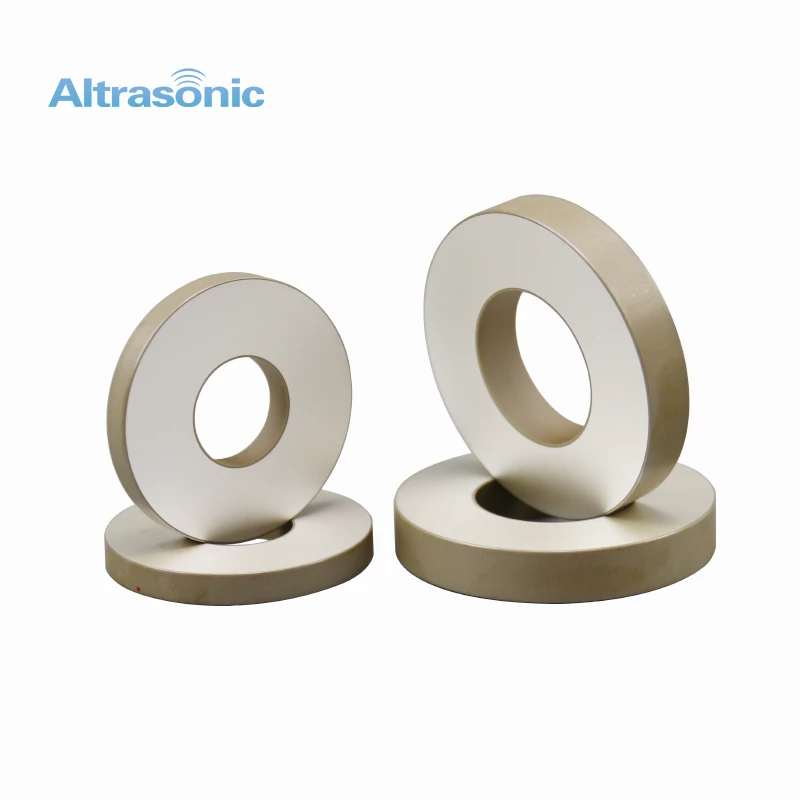

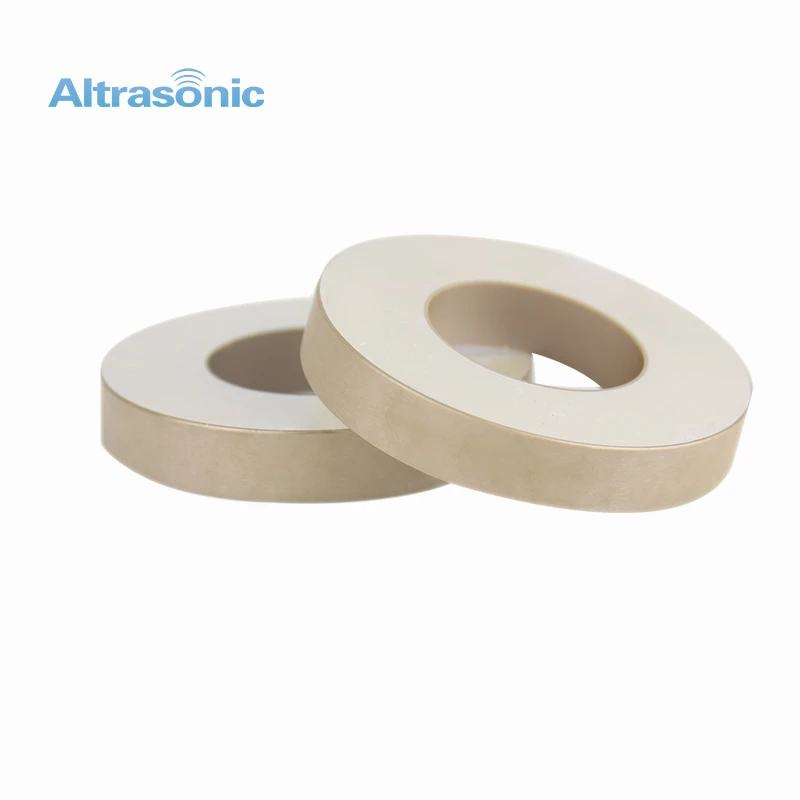

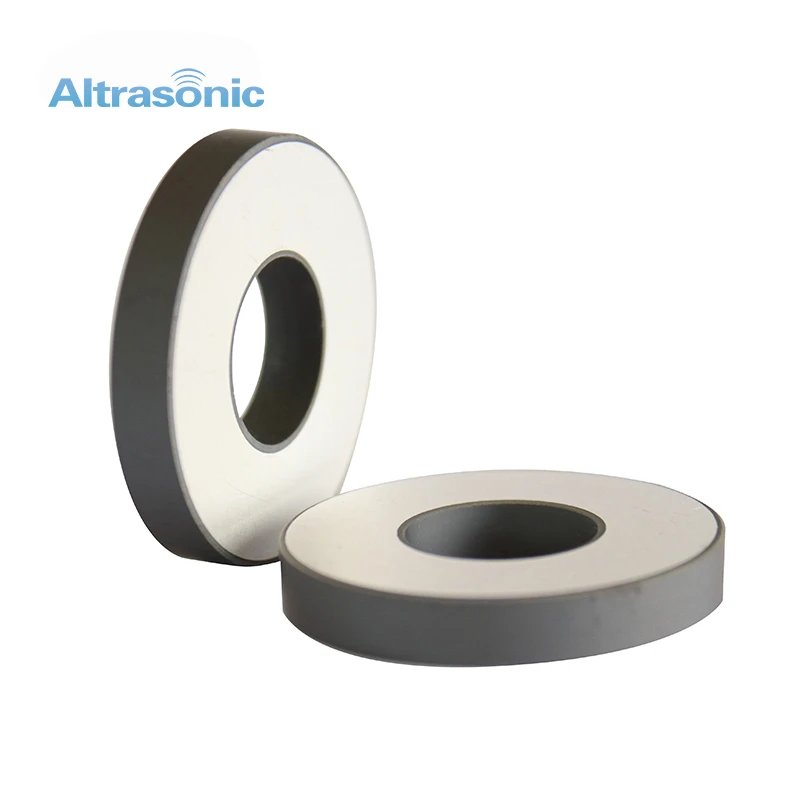

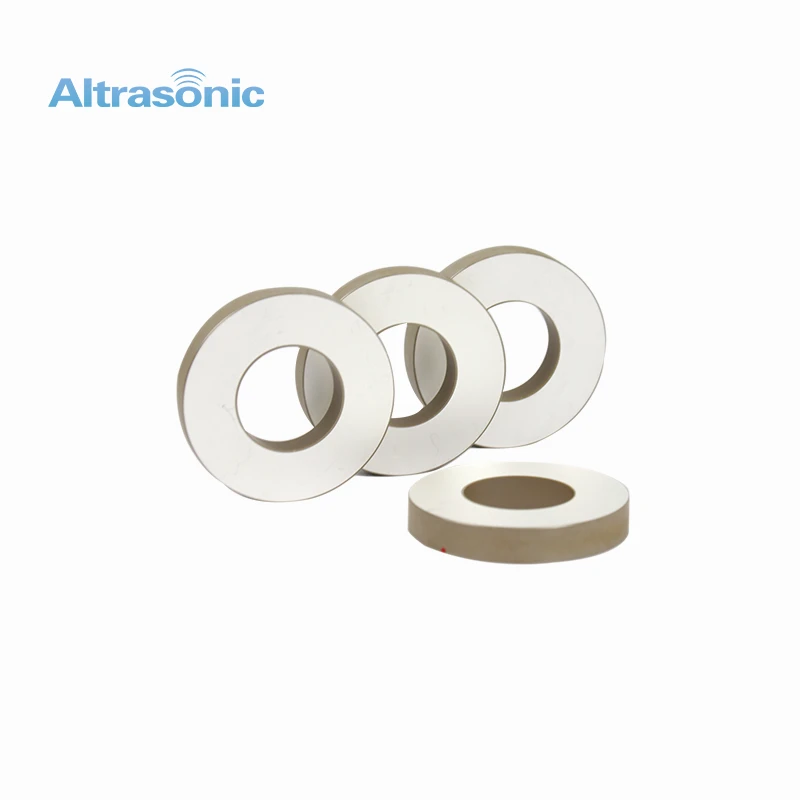

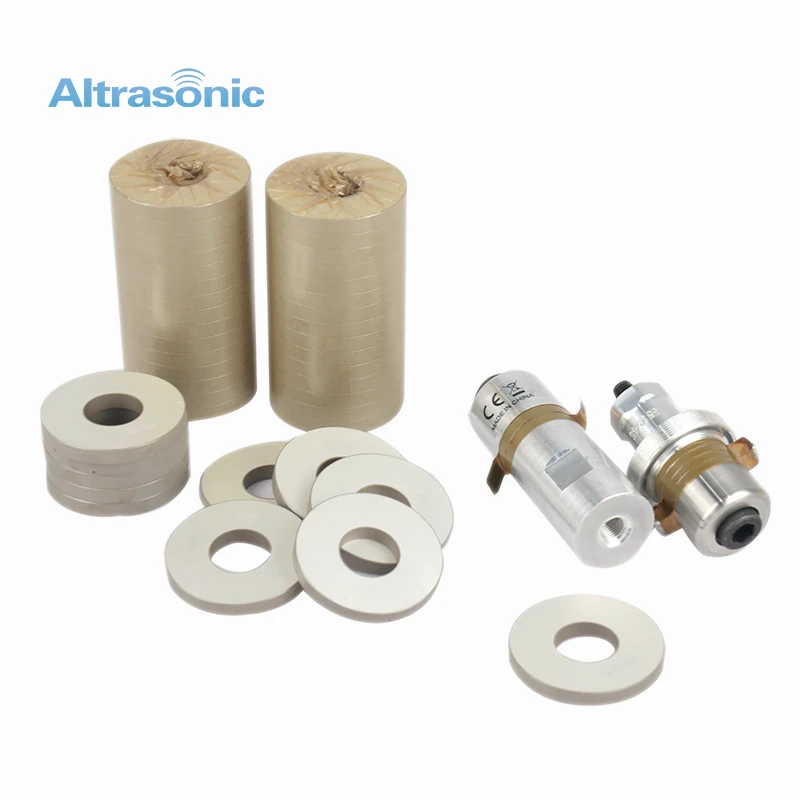

Name: PZT8 PZT4 P8 P4 Ultrasonic Piezoelectric Ceramic Rings for Ultrasonic Transducer Manufacturing
Brand: Altrasonic Technology
SKU: HS-PC
Rating: 4.8 (78 reviews)

Product Introduction

Materials	Size	Electric capacity CT(pF)	Loss tgδ(%)	Resonant frequency Fs(kHz)	Coupling coefficient Kp(%)	Quality facor Qm
P8	Φ10×Φ5×2	265	0.3	154.7	53	800
	Φ13×Φ5.3×2.2	455	0.3	126.8	53	800
	Φ15×Φ6×2	670	0.3	110	53	800
	Φ18×Φ8×7	265	0.3	89	53	800
	Φ20×Φ8×6	400	0.3	82.9	53	800
	Φ20×Φ10×5	425	0.3	77.3	53	800
	Φ25×Φ10×5	750	0.3	66.3	53	800
	Φ25×Φ12×5	690	0.3	62.7	53	800
	Φ30×Φ10×5	1140	0.3	58	53	800
	Φ30×Φ12×5	1075	0.3	55	53	800
	Φ32×Φ12×5	1255	0.3	52.7	53	800
	Φ35×Φ15×5	1425	0.3	46.4	53	800
	Φ38×Φ15×5	1735	0.3	43.8	53	800
	Φ40×Φ12×5	2075	0.3	44.6	53	800
	Φ40×Φ15×5	1960	0.3	42.2	53	800
	Φ45×Φ15×5	2565	0.3	38.7	53	800
	Φ45×Φ17×5	2475	0.3	37.4	53	800
	Φ49×Φ23×6	2225	0.3	32.2	53	800
	Φ50×Φ17×5	3150	0.3	34.6	53	800
	Φ50×Φ17×6.5	2425	0.3	34.6	53	800
	Φ50×Φ17×7.5	2100	0.3	34.6	53	800
	Φ50×Φ20×6	2495	0.3	33.1	53	800
	Φ50×Φ20×7	2135	0.3	33.1	53	800
	Φ50×Φ23×6	2340	0.3	31.8	53	800
	Φ50×Φ23×6.5	2170	0.3	31.8	53	800
	Φ50×Φ23×7	2005	0.3	31.8	53	800
	Φ55×Φ20×8	2340	0.3	30.9	53	800
	Φ55×Φ26×7	2390	0.3	28.6	53	800
	Φ60×Φ30×10	1925	0.3	25.8	53	800
	Φ69×Φ33×11	2380	0.3	22.7	53	800
	Φ70×Φ30×10	2850	0.3	22.7	53	800
P4	Φ10×Φ5×2	350	0.3	142	60	1000
	Φ13×Φ5.3×2.2	580	0.3	116	60	1000
	Φ15×Φ6×2	900	0.3	101.5	60	1000
	Φ15×Φ6×3	600	0.3	101.5	60	1000
	Φ15×Φ6×4	450	0.3	101.5	60	1000
	Φ25×Φ10×5	1000	0.3	60.9	60	1000
	Φ30×Φ15×5	1285	0.3	47	60	1000
	Φ35×Φ15×5	1905	0.3	42.6	60	1000
	Φ38×Φ12.7×6	2035	0.3	42	60	1000
	Φ38×Φ15×5	2320	0.3	40.2	60	1000
	Φ38×Φ15×6.5	1785	0.3	40.2	60	1000
	Φ40×Φ15×5	2620	0.3	38.7	60	1000
	Φ49×Φ23×6	2820	0.3	29.6	60	1000
	Φ50×Φ17×6.5	3240	0.3	31.8	60	1000
	Φ50×Φ17×7.5	2805	0.3	31.8	60	1000
	Φ50×Φ20×6	3330	0.3	30.5	60	1000
	Φ50×Φ20×7	2855	0.3	30.5	60	1000
	Φ50×Φ23×6.5	2890	0.3	29.2	60	1000
	Φ50×Φ23×7.5	2505	0.3	29.2	60	1000
	Φ60×Φ30×10	2570	0.3	22.7	60	1000

Description

Piezoelectric ceramics, based on the piezoelectric and inverse piezoelectric effects inherent in their materials, can convert mechanical energy into electrical energy and vice versa. They have been widely applied in the manufacturing of ultrasonic transducers and are a critical component in the research, design, and production of ultrasonic transducers.

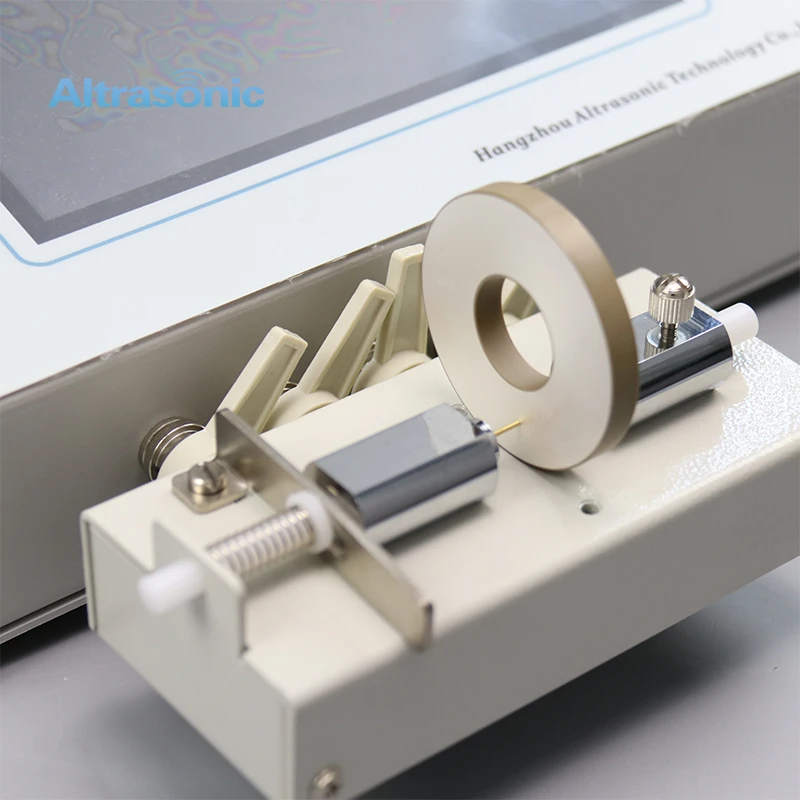

Altrasonic Technology possesses the entire process from R&D to manufacturing of piezoelectric ceramics, mastering the formulas and principles of various piezoelectric ceramic materials. The piezoelectric ceramic rings we produce have undergone rigorous testing and practical application, and all technical parameters meet or exceed industry standards.

altrasonic piezoceramic production process

Advantages

High QM
Low impedance
High power density
Low mechanical dielectric loss
High piezoelectric coupling coefficient
Stable performance and long service life
Good consistency
Supports customisation

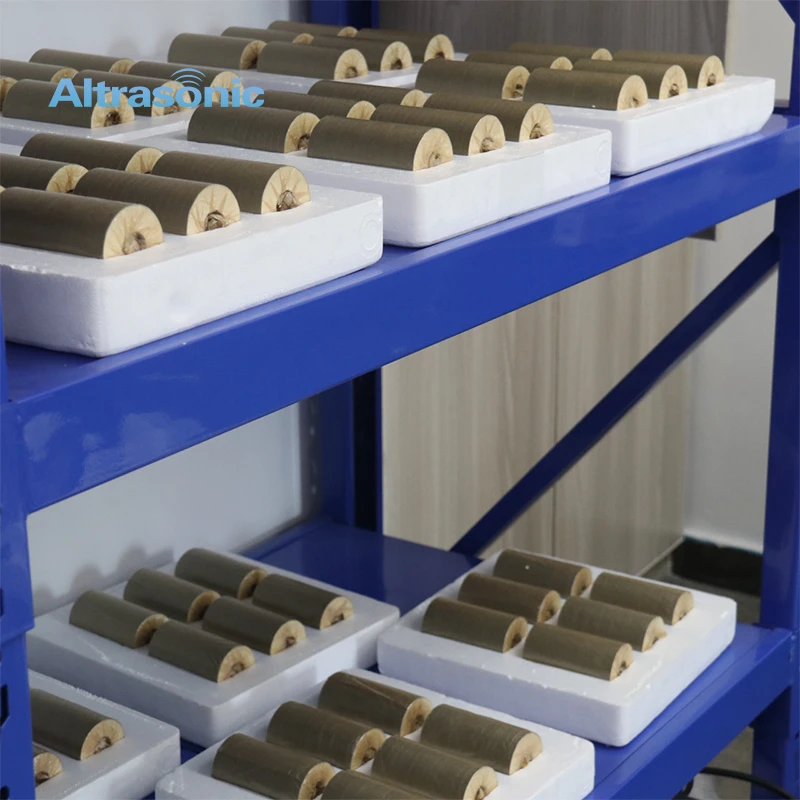

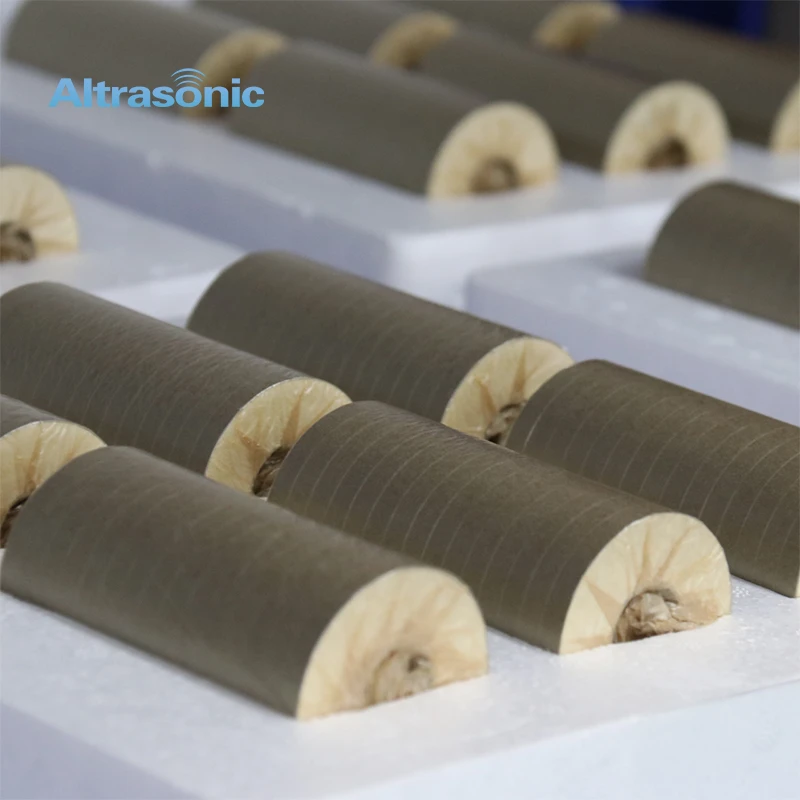

altrasonic piezoceramics packaging
